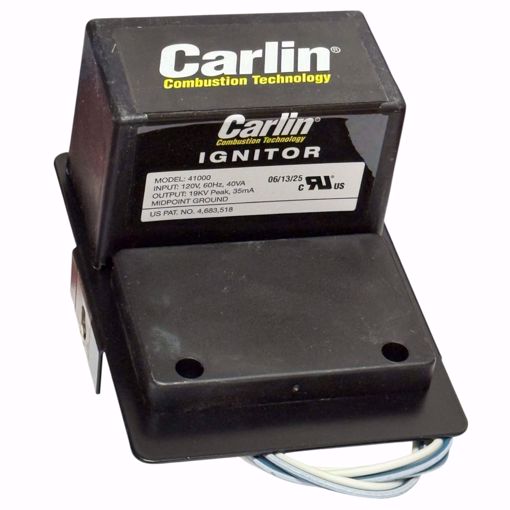

CARLIN CONSTANT DUTY IGNITOR / BASE CARLIN (601CRD 701CRD 70

Manufacturer: Carlin

41000S0LC CARLIN CONSTANT DUTY IGNITOR / BASE CARLIN (601CRD 701CRD 70 - Model# 41000 - Input 120V, 60Hz, 40VA - Output 19KV Peak, 35mA - Midpoint Ground - Temp Range 32 to 140 F - Vacuum Impregnated / Water Resistant - Lightweight/ Replaces 10,000V AC Transformer Features - 14,000-volt output for smoother ignition - Solid state technology yields high performance, long life and durability - Constant-duty rated - Low current draw saves electricity - Epoxy sealant provides water resistance and heat dissipation - Consistent voltage output across a wide range of input voltages - Easy testing — 41000 ignitor sparks can jump ¾” gap - For use with 601CRD 701CRD 70 This ignitor comes complete with a base plate for mounting on Beckett AF and AFG burners.

SKU: CARLIN:41000S0LC

Product Availability: Out of stock

$98.84

This product must be purchased in increments of 1

Qty:

i h

41000S0LC CARLIN CONSTANT DUTY IGNITOR / BASE CARLIN (601CRD 701CRD 70

- Model# 41000
- Input 120V, 60Hz, 40VA
- Output 19KV Peak, 35mA
- Midpoint Ground
- Temp Range 32 to 140 F
- Vacuum Impregnated / Water Resistant
- Lightweight/ Replaces 10,000V AC Transformer

Features
- 14,000-volt output for smoother ignition
- Solid state technology yields high performance, long life and durability
- Constant-duty rated
- Low current draw saves electricity
- Epoxy sealant provides water resistance and heat dissipation
- Consistent voltage output across a wide range of input voltages
- Easy testing — 41000 ignitor sparks can jump ¾” gap
- For use with 601CRD 701CRD 70

This ignitor comes complete with a base plate for mounting on Beckett AF and AFG burners.

Products specifications

Used in	Carlin 601CRD
Used in	Carlin 701CRD
Used in	Carlin 702CRD
Used in	Carlin 801CRD
Used in	Carlin 1050FFD
Used in	Carlin 1150FFD
Used in	601 GAS BURNERS
Used in	702G BURNERS
Used in	702G/0 BURNERS
Manufacturer	Carlin
