AQUASTAT. VERT OR HOR MOUNT 240F STOP 5-30F ADJ. DIFF W/IMM.

Manufacturer: Resideo
Aquastat, breaks on rise, 100-240F range, 240F factory stop, 5-30F adjustable differential Temperature Range (F)Maximum--150 F Operating Temperature Range (F)100 F to 240 F Includes 1/2 in. well - 123869A; Stop factory-set at 240 F (116 C) Bulb Size 3/8 in. x 2 7/8 in. copper Differential Temperature 5 F to 30 F adj. Switching Action SPST, contacts break on temperature rise. Capillary Length (in.) 1 1/2" Well Spud Size (in.)1/2" Electrical Ratings Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac Features - Totally enclosed Micro Switchâ„¢ snap-acting switches operate on temperature rise to setpoint. - Visible control point scale and external adjustment screw permit easy setting. - Horizontal or vertical insertion of the sensing element. - Direct or well immersion of the sensing element. - Models available for strap-on mounting. - Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications. - Select models include heat-conductive compound. - Select models have wells. - UL limit rated device. Aquastat Controllers from Resideo are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. L4006 are used in applications that utilize the existing wells
SKU: RESIDEO:L4006A1967
Product Availability: 10
$166.78
This product must be purchased in increments of 1
i h

Aquastat, breaks on rise, 100-240F range, 240F factory stop, 5-30F adjustable differential

Temperature Range (F)Maximum--150 F
Operating Temperature Range (F)100 F to 240 F
Includes 1/2 in. well - 123869A; Stop factory-set at 240 F (116 C)
Bulb Size 3/8 in. x 2 7/8 in. copper
Differential Temperature 5 F to 30 F adj.
Switching Action SPST, contacts break on temperature rise.
Capillary Length (in.) 1 1/2"
Well Spud Size (in.)1/2"

Electrical Ratings Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac

Features
- Totally enclosed Micro Switchâ„¢ snap-acting switches operate on temperature rise to setpoint.
- Visible control point scale and external adjustment screw permit easy setting.
- Horizontal or vertical insertion of the sensing element.
- Direct or well immersion of the sensing element.
- Models available for strap-on mounting.
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
- Select models include heat-conductive compound.
- Select models have wells.
- UL limit rated device.

Aquastat Controllers from Resideo are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. L4006 are used in applications that utilize the existing wells

Products specifications
Manufacturer Resideo
Customers who bought this item also bought
Picture of CARLIN BLOWER WHEEL FOR 201/301 CRD BURNER

CARLIN BLOWER WHEEL FOR 201/301 CRD BURNER

CARLIN:28563S
SKU: CARLIN:28563S
$34.51

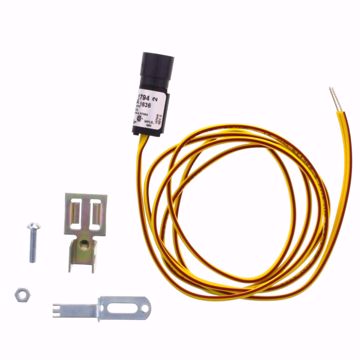

Picture of TRADELINE PHOTOCONDUCTIVE FLAME DETECTOR 60 LEADS E MTG BRKT
