C554A1794 RESIDEO TRADELINE PHOTOCONDUCTIVE FLAME DETECTOR 60 LEADS E MTG BRKT

Manufacturer: Resideo
SKU: RESIDEO:C554A1794
Product Availability: 12
$26.27
This product must be purchased in increments of 1
i h

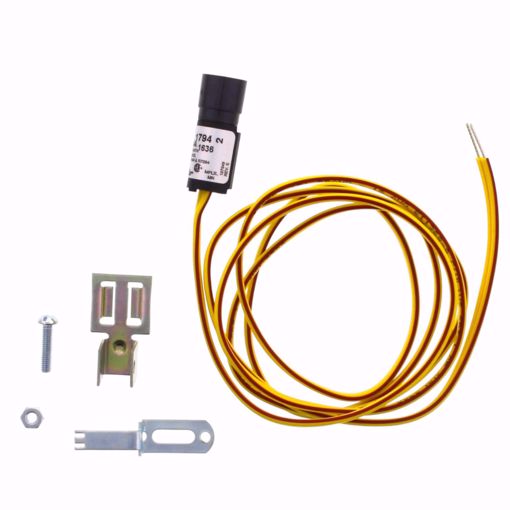

C554A1794 Resideo Tradeline Photoconductive Flame Detector – 60" Leads, E Mounting Bracket


📝 Product Overview

The Resideo C554A1794 Photoconductive Flame Detector is designed for reliable oil burner safety. Featuring a cadmium-sulfide (CdS) flame-sensing cell, this detector provides precise flame monitoring and rapid shutdown in case of flame failure. Comes with 60" lead wires, a Type "E" mounting bracket, and includes the replaceable 130367 cad cell for seamless maintenance. Compatible with a wide range of Resideo oil burners.


Key Features

✅ Cadmium-sulfide (CdS) flame detector for accurate flame sensing
✅ 60" lead wires for flexible installation
✅ Type "E" mounting bracket included for secure attachment
✅ Replaceable CAD cell – prolongs device life
✅ Glass-to-metal hermetic seal protects against humidity, soot, and oil fumes
✅ Automatic shutdown of main oil burner on flame failure
✅ Compatible with multiple Resideo burner models including R4166, R4184, R8182, R8184, R8185, R8404, R8991, R7997, R7184, R7284


📊 Specifications

FeatureDetails
Part Number C554A1794
Brand Resideo
Type Photoconductive Flame Detector
Lead Length 60"
Mounting Bracket Type "E"
Electrical Connections Lead wires: NEC Class 1
Power Consumption 12 mA
Max Ambient Temperature 140°F
Replaceable CAD Cell Yes (130367 included)
Used With Models R4166, R4184, R8182, R8184, R8185, R8404, R8991, R7997, R7184, R7284

⚙️ Applications

  • Residential and commercial oil burner systems

  • Flame monitoring for safety shutdown

  • Replacement for worn or faulty flame detectors

  • Maintenance and retrofitting on compatible Resideo burners


⚠️ Common Symptoms (When Replacement is Needed)

  • Burner fails to ignite or shuts down unexpectedly

  • Flame sensing is intermittent or unreliable

  • CAD cell shows signs of corrosion, soot, or oil damage

  • Excessive humidity or oil fumes causing detector malfunction


Frequently Asked Questions

Q1: Is the CAD cell replaceable?
➡️ Yes, the included 130367 CAD cell is replaceable to extend service life.

Q2: Can this detector fit other Resideo burner models?
➡️ Yes, compatible with R4166, R4184, R8182, R8184, R8185, R8404, R8991, R7997, R7184, R7284.

Q3: What type of mounting bracket is included?
➡️ Type "E" mounting bracket is included for proper installation.


🛒 Shopping Tips

✅ Verify your burner model for compatibility before ordering
✅ Inspect old flame detectors for soot, corrosion, or damage before replacement
✅ Ensure proper lead wire connection according to NEC Class 1 standards

Products specifications
Manufacturer Resideo
