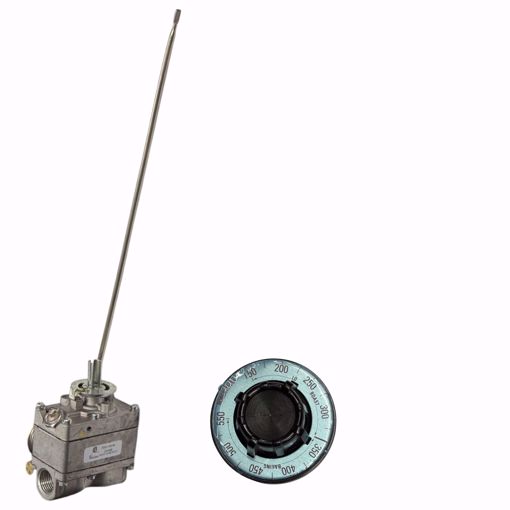

Commercial gas thermostat, 150-500F Model type FDO 1/2" pipe connections with 48" capillary & 1/4" x 8-7/16" bulb.
Temperature Range 150°F to 550°F (66°C to 288°C)
Capillary Length 48"
Bulb Size 1/4" x 8-7/16" Nickel
1/2" Pipe Size
Features and Benefits
- Heat resistant materials and rugged design
- The pilot and bypass keys are accessible and the pilot and keys are slotted for easy adjustment from the front of the control
- Provides temperature control on most gas appliance systems
- Allows for low temperature control
- Modulates the main gas supply and controls the bypass gas with a snap under the same thermostatic action
- Bulb and capillary assemblies supplied in copper, nickel plated copper or steel
- 4-Way mounting position
- RoHS Compliant
The Robertshaw 4200 Series Gas Thermostat is a heavy-duty, high capacity gas thermostat. These units are available with modulating only or with modulating snap-acting bypass. Both pilot and bypass adjustments are provided. Pilot outlets and customized settings are optional. They are available for a wide variety of applications such as deck ovens, convection ovens, baking ovens, and ranges.
