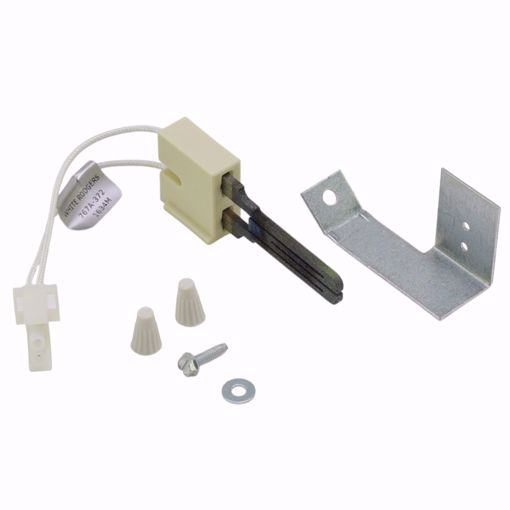

Robertshaw 41-411 271N Hot Surface Furnace Ignitor For Rheem 62-22868-82, RUUD 62-22868-82
Specifications:
Series Application Hot Surface Furnace Ignitor (Carbide)
Factory Part Number 271N
Ceramic Block Style B
Lead Wire Length 4-1/2"
Terminal Connector Type C
Features and Benefits
• Made from high-purity recrystallized silicon carbide. (CrystarTM) which combines physical and thermal strength with stable electrical properties.
• Designed to reach ignition temperature(s) within 17 seconds.
• Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity.
• Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection.
• Operate at 120V AC. Some modules are rated for
208/240V input, however, the voltage to the ignitor
is stepped down to 120V AC.
Can Be Used To Replace The Following:
1164346 REPAIR CLINIC Functional
271N NORTON Functional
41-411N ROBERTSHAW Functional
5JA30 W.W. GRAINGER Exact
62-22868-82 RHEEM Exact
63477 UNI-LINE Exact
661928 BARNETT BRASS Exact
767A-383 WHITE-RODGERS Functional
SIG-108 SUPCO Functional
