Carlin 9859210FRU Universal EZGas Pro Gas Conversion Burner with 10" Air Tube for Boilers
- Model: EZ-Gas Pro
- Input: 50,000 to 275,000 BTUHs
- Supply Pressure 5 to 14.0" W.C.
- Manifold Pressure 3.5" W.C.
- Natural Gas 1000 BTU/CF
- Propane: 2500 BTU/CF
Electrical Rating
- 120Vac
- 60Hz
Features
- Compact flame pattern ensures clean, quiet operation
- Easy color-coded wiring
- Durable spark ignition with flame rod rectification
- Operates in low and fluctuating gas pressures
- Mixes fuel inside the combustion chamber for safe reliable operation
- Advanced 60200FR Primary Control
Universal (Full BTU Range) Burners
Carlin Universal Burners are available in two models – Both include an adjustable mounting flange, all three diffuser plates, both air bands, and a field-drilled orifice. The only difference between the two is the air tube length. One model is equipped with a 10" tube, more than adequate for the insertion depth on most boilers. The other model has a 14" tube better suited for deeper insertion depths typical in warm air furnaces. These universal burners can be configured in the field to accommodate a wide variety of heating appliances. Carlin's Tech Support Team is ready to provide suitability and application assistance.
- 9859210FRU Universal EZGas Pro with 10" Air Tube
- 9859214FRU Universal EZGas Pro with 14" Air Tube
Ignition Carlin Part Number 41800-02
- Input 120V, 60Hz, 40VA
- Output 11KV, 45mA
- Single Pole: End Point Ground
- Operating Temp 0 to 106 F
Features
- Solid state technology yields high performance, long life and durability
- Interrupted-duty rated
- Low current draw saves electricity
- Epoxy sealant provides water resistance and heat dissipation
- Consistent voltage output across a wide range of input voltages
60200FR Carlin Primary Control
Carlin’s Model 60200FR gas burner primary brings state of the art technology to our trusted
control. Designed and made right in the U.S., this control sets the bar high for all gas primaries. It's on board LCD screen displays the current burner status as well as any fault messages. Along with its ability to record fault history up to 50 fault cycles, the 60200FR
makes servicing that much easier.
Features
- LCD screen displays burner status as well as fault messages.
- On-screen micro amp readings.
- Built-in diagnostics to identify component failures.
- Stores detailed fault history up to 50 fault cycles, taking the guess work out of servicing.
- Features easy, on-board programming.
- Other features include Blocked Vent Input, Alarm Contacts and more!
- Pre-purge 30 Sec
- Trial for Ignition 6 Sec
- Post Purge 30 Sec
Carlin Motor 98022S
- Model# Y5L271C81C
- 115V
- 60V
- 1/7 HP
- 1.6 Amps
- 1 Phase
- 3450 RPM
- Max Ambient Temp 150 F
- ROT CCW Shaft End
- Motor Frame 48 Frame "M" Flange

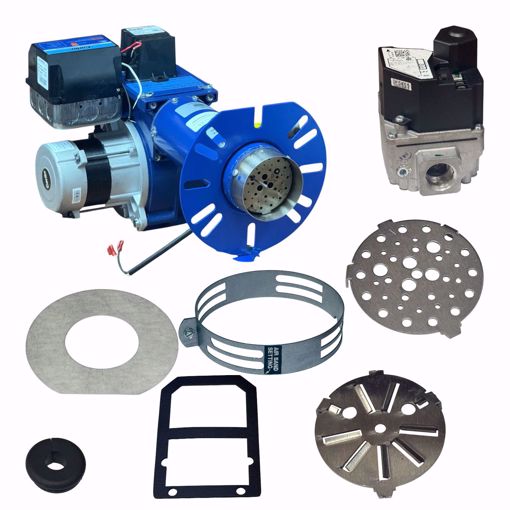

Diffuser Plates:
Three diffusers are available from Carlin to accommodate various BTU input ranges:
• “A” Diffuser Plate: 175,000 - 275,000 BTUH
• “B” Diffuser Plate: 50,000 - 175,000 BTUH
• 9-Slot Diffuser Plate: 70,000 - 230,000 BTUH
Air Bands: Two air bands are available to accommodate various BTU input ranges:
• 1-Slot: 50,000 - 175,000 BTUH
• 2-Slot: 175,000 - 275,000 BTUH
Carlin also offers adjustable flange, field drilled orifice burners with combinations of air tube length and diffuser plates that are common to many heating appliances. Consult factory for more information.
The Carlin EZGas Pro burner was designed to convert oil-fired appliances to natural
gas or propane. When the existing oil appliance is in good operating condition, the EZGas Pro burner is fast and easy to install and provides a significantly less expensive alternative to replacing the heating appliance. With an input range of 50,000 to 275,000 BTUH, the EZGas Pro is ideal for virtually any residential conversion.
The EZGas Pro fires refractory or non-refractory chambers and accommodates chimney vent, direct vent, or power vent applications. The 3 1/2" diameter air tube fits any heating
appliance including furnaces, direct-fired water heaters, pin-style, steel, and three-pass boilers. The EZGas Pro burner is a UL Listed conversion burner meeting the code requirements for gas conversions in most areas.
IMPORTANT The Carlin EZGas Pro burner should be installed or serviced only by licensed and trained professionals. Failure to do so will void the warranty.
