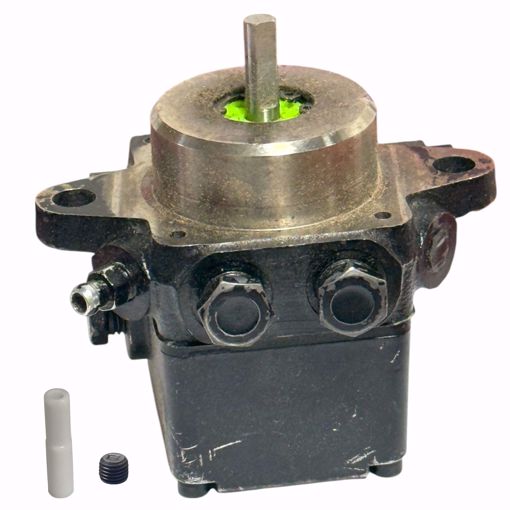

SUNTEC 2 STAGE B2TA-8260- 601CRD/701CRD/801CRD

Manufacturer: Carlin
98042S CARLIN SUNTEC 2 STAGE B2TA-8260- 601CRD/701CRD/801CRD Specifications: - 2 Stage Pump - Nozzle pressure range 100 to 200 psi - Delivery pressure setting 100 psi - Oil temperature 50 to 115 F - Inlet/return pressure 10 psi max - Suction height Single pipe : 6" Hg max. vacuum, two-pipe : 15" Hg max. vacuum, to prevent air separation from oil - Rated speed 3450 rpm max - Mounting Flange mounting, any position, except upside down. - Inlet and return 1/4 NPTF - Nozzle outlet 1/8 NPTF - Pressure gauge port 1/8 NPTF - Bleeder valve port Special - Valve function Pressure regulation - Cut-off Diaphragm - Strainer 23 GPH - Shaft 5/16 in - By-pass plug Not inserted in return port, for one pipe system, to be inserted in return port with a 5/32 Allen key or two-pipe system Rated nozzle flow - 23 GPH @ 100 psi, 3450 rpm (#2 fuel oil and lighter fuel) - 15 GPH @ 200 psi, 3450 rpm (#2 fuel oil and lighter fuel) Includes - 991362B SUNTEC BTYPASS PLUG 1/16 INCH A & B MINI PUMPS - 3754753 Shaft Adapter Used with 601CRD/701CRD/801/1050/1150CRD Burners
SKU: CARLIN:98042S
Product Availability: Out of stock
$339.03
This product must be purchased in increments of 1
i h

98042S CARLIN SUNTEC 2 STAGE B2TA-8260- 601CRD/701CRD/801CRD

Specifications:
- 2 Stage Pump
- Nozzle pressure range 100 to 200 psi
- Delivery pressure setting 100 psi
- Oil temperature 50 to 115 F
- Inlet/return pressure 10 psi max
- Suction height Single pipe : 6" Hg max. vacuum, two-pipe : 15" Hg max. vacuum, to prevent air separation from oil
- Rated speed 3450 rpm max
- Mounting Flange mounting, any position, except upside down.
- Inlet and return 1/4 NPTF
- Nozzle outlet 1/8 NPTF
- Pressure gauge port 1/8 NPTF
- Bleeder valve port Special
- Valve function Pressure regulation
- Cut-off Diaphragm
- Strainer 23 GPH
- Shaft 5/16 in
- By-pass plug Not inserted in return port, for one pipe system, to be inserted in return port with a 5/32 Allen key or two-pipe system

Rated nozzle flow
- 23 GPH @ 100 psi, 3450 rpm (#2 fuel oil and lighter fuel)
- 15 GPH @ 200 psi, 3450 rpm (#2 fuel oil and lighter fuel)

Includes
- 991362B SUNTEC BTYPASS PLUG 1/16 INCH A & B MINI PUMPS
- 3754753 Shaft Adapter

Used with 601CRD/701CRD/801/1050/1150CRD Burners

Products specifications
Used in Carlin 601CRD
Used in Carlin 701CRD
Used in Carlin 801CRD
Manufacturer Carlin
