BR100 BECKETT AF/AFG OIL AND RENEWABLE FUELS BURNER 0.40 TO 3.00 GPH
Model AFG
Specifications
- 0.50 to 3.00 gph
- 56,000 to 420,000 BTU/hr input
- Fuels: No.1 or No.2 heating oil (ASTM D396) only
- Fuel Unit: Single-stage Beckett CleanCut
- B100 Complaint
- 120V
- 60Hz
- 5.80 Amps
Fuels
ASTM D396 FOR #1 & #2 Heating oil
ASTM D396 for B6 – B20 Biodiesel blends
ASTM D975 for Diesel fuel, Renewable diesel
Biodiesel blends of D396 & D6751 to B100
CAN / CGSB -3.2 for Heating oil Types 0, 1, and 2
Electronic Oil Igniter Beckett part number 51771U
- 120V
- 60Hz
- 2 Amps
- Output 20kV
- Output 25mA
- Secondary Mid-point Ground Ambient Operating Temperature: -20° to 150°F
- Storage Temperature: -40° to 150°F
Single Stage CleanCut Pump, (120V) 4 GPH Beckett part number PF20323
- Max Pressure 200 psi
- 120V
- 4.0 GPH Flow Rate
- 4 GPH @ 100 to 150 psi
- 3 GPH @ 150 to 200 psi
- 3450 RPM
- For No.1 / No.2 / MAZOUT Fuels
- For B6 to B20 ; B21 to B100 ( US Only)
Beckett PSC Burner Motor (120V, 1/7 HP, 3450 RPM) Beckett part number 21805U
- 115V
- 60Hz
- 1/7HP
- 1.6 Amps
- 1 Phase
- 3450 RPM
- Max Amp Temp 150 F
7565 GeniSys 120V Advanced Oil Burner Control Beckett part number 7565U
- 120V
- 60 Hz
- Temp Range -40 to 150 F
- Last 50 cycles and last 15 faults history
- Compatible with burners running #2 fuel oil, up to 100% biodiesel, and up to 100% renewable diesel
- Enhanced diagnostics and programming through the myTechnician app
- Configurable for interrupted or intermittent ignition operation
- Configurable timings for valve-on delay (or “prepurge”) and motor-off delay (or “post-purge”)
- Eight status lights provide hands-free understanding of burner operation
- Pump prime mode for technicians
- Extra terminal for compatibility with smart thermostats
- Upon request, sends live control data and history to R.W. Beckett Technical Support when troubleshooting
- Auto-configures valve-on delay timing for a solenoid valve upon detection
The Beckett GeniSys 7565 Advanced Burner Control is a 120VAC primary safety control
for residential and light commercial oil burners used in boiler, furnace, and water heater applications having firing rates less than 20 gph. The GeniSys is used with the Beckett 7006-series CAD cell or equivalent flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It has 24VAC thermostat terminals compatible with both mechanical and many power stealing thermostats. It can also provide interrupted or intermittent duty ignition.
blower Wheel
4-1/4" x 2-1/2" AFG Blower Wheel Beckett part number 2999U
- Size 4-1/4" x 2-1/2"
Nozzle Line Beckett part number 5636
- Size 6-1/2"
Product Dimensions
Dimensions (Standard)
- Height: 11-1/2″
- Width: 12-7/8″
- Depth: 6-9/16″
Dimensions (with Cover)
- Height: 12-1/2″
- Width: 15″
- Depth: 9-1/4″
Also Contains Beckett part number # 5880 LOW FIRE BAFFLE KIT

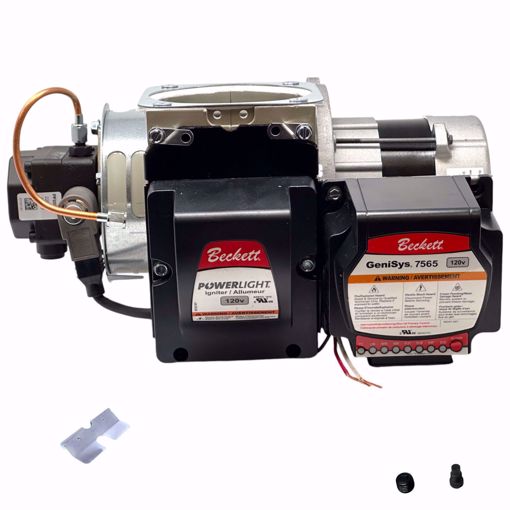

AFG Chassis Only (Replaces B2007, B2008 & B3001)

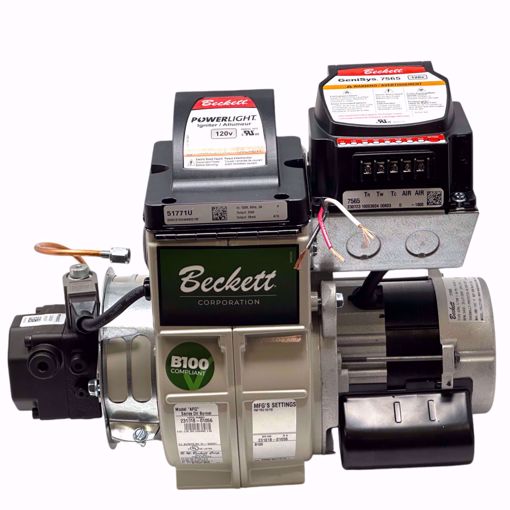

The Beckett models AF & AFG burner are designed to meet the increased demands of modern equipment and changing fuels to meet both performance and carbon reduction challenges.
Beckett burners utilize the most technologically advanced components available today and are UL Listed for use with up to 100% biodiesel (B100) and traditional fuel oil. Beckett has rigorously tested 100% renewable diesel (R100), and 100% biodiesel and traditional fuels. The AF and AFG burners have been supplied on original equipment boilers, furnaces, and water heaters for many years. As technology improved, so have our burners and components. If a burner is more than 10 years old, a new AF/AFG chassis is a simple way to upgrade the system. Installation by
your service company is uncomplicated
**DOES NOT INCLUDE MOUNTING FLANGE DOES NOT INCLUDE BLAST TUBE AND ASSEMBLY
AFG Chassis Only (Replaces B2007 & B2008 )**
