2260-TP ALLANSON ELECTRONIC IGNITOR PRIMARY VOLTAGE 120 VOLT 50/60

Manufacturer: Allanson

Mounting tabs | 3 way mounting | Primary wire plug set with pigtails | One ground wire - Application: GAS - Input Voltage : 120V - Grounding: One End Ground - Current: 28mA - Primary Voltage: 120 Volt - Secondary Voltage: 15.6 kVpk - Input Frequency: 50/60Hz - Hv Terminal: Rajah Connector Features: - Easy conversion with mounting tabs and primary wire connector - No clumsy connections - Extended life expectancy - Energy efficient - Meets EMI/RFI requirements - Quick and easy to install - Optional secondary connector kit available - Storage Temperature: -40°C to 80°C - Operating Temperature: -30°C to 40°C - Operating Relative Humidity: 90% - Loading Air Gap: 1/16″ – 3/16″ Allanson’s ignitors are designed for constant duty and provide the most reliable ignition source for commercial, residential, and industrial applications. 2260-TP

SKU: ALLANSON:2260-TP

Product Availability: 6

$57.85

This product must be purchased in increments of 1

Qty:

i h

Mounting tabs | 3 way mounting | Primary wire plug set with pigtails | One ground wire

- Application: GAS
- Input Voltage : 120V
- Grounding: One End Ground
- Current: 28mA
- Primary Voltage: 120 Volt
- Secondary Voltage: 15.6 kVpk
- Input Frequency: 50/60Hz
- Hv Terminal: Rajah Connector

Features:
- Easy conversion with mounting tabs and primary wire connector
- No clumsy connections
- Extended life expectancy
- Energy efficient
- Meets EMI/RFI requirements
- Quick and easy to install

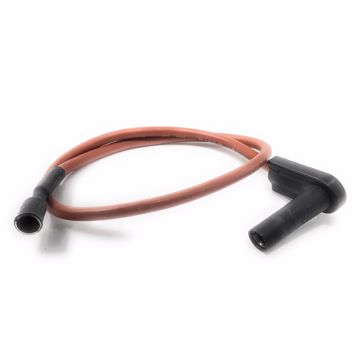

- Optional secondary connector kit available
- Storage Temperature: -40°C to 80°C
- Operating Temperature: -30°C to 40°C
- Operating Relative Humidity: 90%
- Loading Air Gap: 1/16″ – 3/16″

Allanson’s ignitors are designed for constant duty and provide the most reliable ignition source for commercial, residential, and industrial applications.

2260-TP
