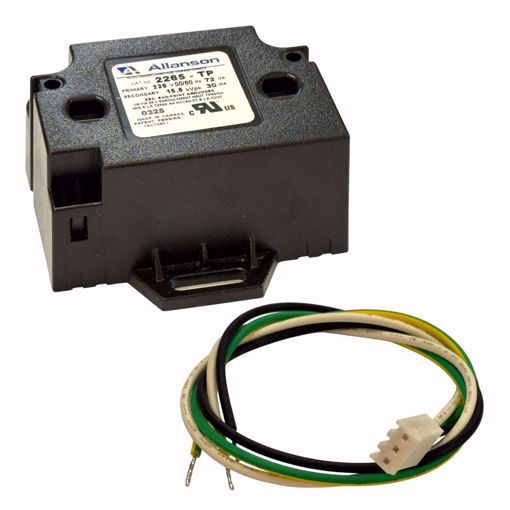

2265-TP ALLANSON 230V Transformer – 15.6 kVpk Secondary | Gas Ignitor

The 2265-TP ALLANSON Transformer is a high-performance gas ignition transformer designed for constant-duty commercial, residential, and industrial applications. With a 230V primary input and 15.6 kVpk secondary output, it provides reliable ignition for gas burners. Built for durability, energy efficiency, and safety, this transformer features mounting tabs with primary plug set with pigtails and supports easy 3-way installation.

🔑 Key Features

✅ Application: Gas
✅ Primary Voltage: 230V (Input 230–240V)
✅ Current: 30 mA
✅ Secondary Voltage: 15.6 kVpk
✅ Input Frequency: 50/60Hz
✅ Mounting: Mounting tabs with primary plug set with pigtails & 3-way mounting
✅ Easy Installation: No clumsy connections required
✅ Energy Efficient: Designed for low operating temperature and extended life
✅ Durable Construction: Meets EMI/RFI requirements
✅ Quick & Easy Replacement: Optional secondary connector kit available
✅ Operating Conditions:

• Storage Temperature: -40 to 176°F (-40°C to 80°C)

• Operating Temperature: -22 to 104°F (-30°C to 40°C)

• Operating Relative Humidity: 90%

• Loading Air Gap: 1/16″ – 3/16″

📊 Technical Specifications

⚠️ Common Symptoms Indicating Transformer Replacement

• Burner fails to ignite or produces weak spark

• Inconsistent ignition or delayed ignition performance

• Excessive heat or unusual noise from transformer

• Visible wear or insulation damage

🛒 Shopping Tips

• Confirm Compatibility: Suitable for gas burner ignition systems requiring 230V primary and 15.6 kVpk secondary.

• Installation: Ships with mounting tabs and primary plug set for quick, easy setup.

• Energy Efficient: Designed for low operating temperature and extended life.

• Optional Accessories: Secondary connector kit available for convenience.

❓ Frequently Asked Questions (FAQ)

Q1: What burners is this transformer compatible with?
A: Compatible with commercial, residential, and industrial gas burners requiring 230V primary input.

Q2: What is the input and output voltage?
A: Input: 230–240V AC, Output: 15.6 kVpk.

Q3: How is it mounted?
A: Uses mounting tabs with primary plug set with pigtails and supports 3-way mounting.

Q4: Is it suitable for constant-duty operation?
A: Yes, it is designed for continuous operation.

Q5: What are the operating temperature limits?
A: Operating Temperature: -22 to 104°F (-30°C to 40°C), Storage Temperature: -40 to 176°F (-40°C to 80°C).

Q6: Does it meet EMI/RFI standards?
A: Yes, it meets American and European noise emission requirements.
