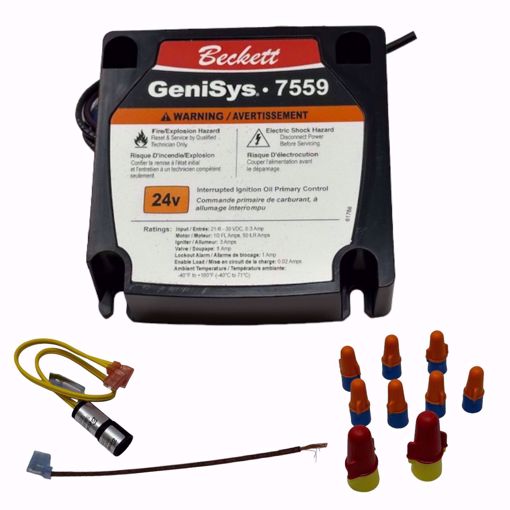

BECKETT 7559A0000U PRIMARY CONTROL

Manufacturer: Beckett

- 24V - Input 21.6 to 30 VDC, 0.3 Amps - Motor 10 FL Amps, 50 LR Amps - Igniter 3 Amps - Valve 1 Amp - Lockout Alarm 1 Amp - Enable Load 0.02 Amps - Ambient Temperature -40 to 160 F The Beckett GeniSys 7559 Oil Burner Control is a potted (for high moisture environments) 24 VDC primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys 7559 is used with the GeniSys CAD Cell Flame Detector Kit 7006U to control the oil burner’s motor, igniter, and optional solenoid valve. The control operates the burner with interrupted ignition with a 15 second lockout time. With the GeniSys Contractor Tool 52082, the control can be programmed with pre-purge and post-purge timings. For diagnostics, the GeniSys 7559 stores the last 15 cycles. 7559A0000U

SKU: BECKETT:7559A0000U

Product Availability: 1

$211.41

This product must be purchased in increments of 1

Qty:

i h

- 24V
- Input 21.6 to 30 VDC, 0.3 Amps
- Motor 10 FL Amps, 50 LR Amps
- Igniter 3 Amps
- Valve 1 Amp
- Lockout Alarm 1 Amp
- Enable Load 0.02 Amps
- Ambient Temperature -40 to 160 F

The Beckett GeniSys 7559 Oil Burner Control is a potted (for high moisture environments) 24 VDC primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys 7559 is used with the GeniSys CAD Cell Flame Detector Kit 7006U to control the oil burner’s motor, igniter, and optional solenoid valve. The control operates the burner with interrupted ignition with a 15 second lockout time.

With the GeniSys Contractor Tool 52082, the control can be programmed with pre-purge and post-purge timings. For diagnostics, the GeniSys 7559 stores the last 15 cycles.

7559A0000U

Products specifications
