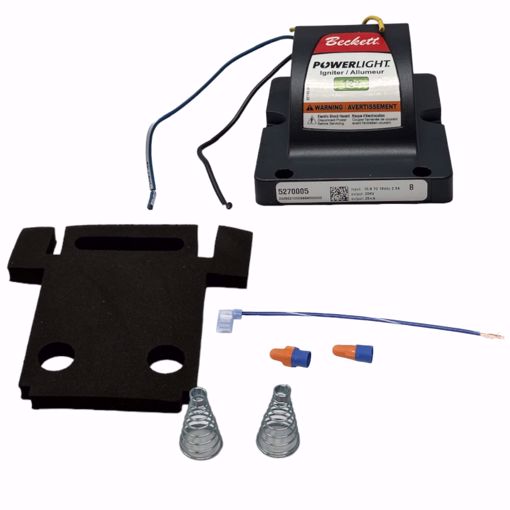

12VDC IGNITOR ONLY FOR ADC AND SDC OIL BURNERS

5270005U 12VDC IGNITOR ONLY FOR ADC AND SDC OIL BURNERS
5270005U
5270005U replaces 5218309U
12 VDC
Features & Benefits
20 kV peak rating guarantees quick and efficient ignition.
UL recognized in the US and Canada (120Vac and 240Vac only).
• External heat sink eliminated for improved performance and reduced frequency of replacement due to overheating and arcing.
• Easy change to interrupted ignition to increase igniter life and save energy.
• Lightweight, single piece design is compatible with Beckett and other burners to reduce required inventory.
• Fully potted with improved epoxy to withstand thermal shock and protect electronic components; waterproof.
• Simplified wiring requirements and fewer wires for ease of installation
Functionality
• Weighs less than 1 lb. versus an 8 lb. iron core transformer, making
shipping and installation easier
• A vacuum encapsulation process using epoxy, provides resistance to
moisture, excellent heat dissipation and electrical insulation
• Case material is high-temperature thermoplastic that provides high impact strength, scratch resistance, impenetrable to oil and
most chemicals
• Adapts to multiple baseplates - making it the most versatile unit
on the market.
• Epoxy potting will not shrink or crack like tar-filled transformers

 **Does NOT Include A Base Plate**

Replaces 5218309U, 7435U, 5049, 7-7435U, 98026640, 9.802-664.0, 98026870, 9.802-687.0, 079681, 630808

Specifications
Input Voltage: 10.8 - 16 Vdc
Output Voltage: 20 kV peak
Output Current: 25 mA RMS
Input Current: 1.8A
Ambient Operating Temperature: -40 to +150° F
Storage Temperature: -40 to +150° F
Moisture: 5 to 95% Relative Humidity, Condensing

This igniter is designed for use with 12 VDC. It is rated for continuous duty and can be used with intermittent, or interrupted ignition primary controls. The Beckett oil igniter is designed to mount in the same manner as standard ignition transformers and igniters. This igniter can be adapted to multiple base plates to accommodate Beckett ADC & SDC burners. It will also fit on many other vendors’ transformer base plates. **CAUTION!** Do not use this igniter beyond its design specifications. Improper operation and igniter failure may result. Same as BPE-700-211
