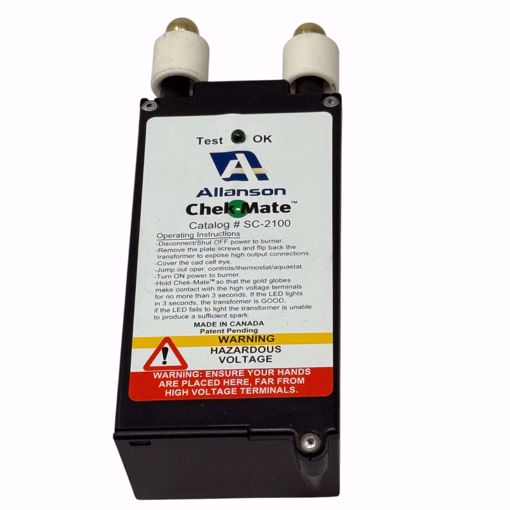

SC-2100 Allanson Chek-Mate Ignition Transformer & Electrode Tester

The Allanson SC-2100 Chek-Mate is a compact, reliable diagnostic tool designed to quickly test double pole electric ignitors and iron core transformers. Ideal for HVAC technicians and service professionals, it instantly determines whether your ignition transformer or ignitor is performing correctly, saving time and reducing guesswork on service calls.

Replaces: Grainger 25M560

✅ Key Features

• Instant Testing – Tests double pole electric ignitors and iron core transformers in seconds

• Simple Operation – LED indicator lights when the transformer or ignitor is performing properly

• Compact & Lightweight – Easy to carry and use in tight spaces

• Universal Compatibility – Works with transformers and ignitors from various manufacturers

• Safe & Convenient – Gold globes make contact with high voltage terminals while keeping hands clear

📖 Operating Instructions

1. Power Off – Disconnect or shut off power to the burner.

2. Expose Terminals – Remove the mounting plate screws and flip back the transformer or ignitor to access high voltage connections.

3. Cover Cad Cell Eye – Prevent accidental triggering of burner controls.

4. Bypass Controls – Jump out operating controls/thermostat/aquastat.

5. Power On – Turn on burner power.

6. Test Transformer/Ignitor – Touch the Chek-Mate gold globes to the high voltage terminals:

   • Green LED lights in 3 seconds → Transformer/Ignitor is GOOD

   • LED fails to light → Transformer/Ignitor is BAD; replace unit

7. Reset – Turn off power, disconnect tester, return transformer/ignitor to original position, secure mounting plate, and power burner on.

⚠️ Safety Note: Keep hands clear of high voltage terminals while testing.

📊 Specifications

🛒 Shopping Tips

• Confirm transformer type – Works with both double pole electric ignitors and iron core transformers.

• Check safety precautions – Always follow the operating instructions and keep hands away from high voltage contacts.

• Carry on service calls – Its compact design makes it ideal for technicians needing a portable tester.

• Replacement ready – If the LED fails to light during testing, replace the transformer/ignitor promptly to avoid burner failure.

❓ Frequently Asked Questions (FAQ)

Q1: Can SC-2100 test all brands of ignition transformers?
A: Yes, it is compatible with most double pole electric ignitors and iron core transformers.

Q2: How do I know if a transformer is bad?
A: If the green LED fails to light within 3 seconds of touching the high voltage terminals, the unit is unable to produce a sufficient spark and should be replaced.

Q3: Is it safe to use?
A: Yes, if used according to instructions. Always keep hands away from high voltage terminals during testing.

Q4: Can this tester be carried on the job?
A: Absolutely. Its lightweight and compact design make it perfect for service calls.
