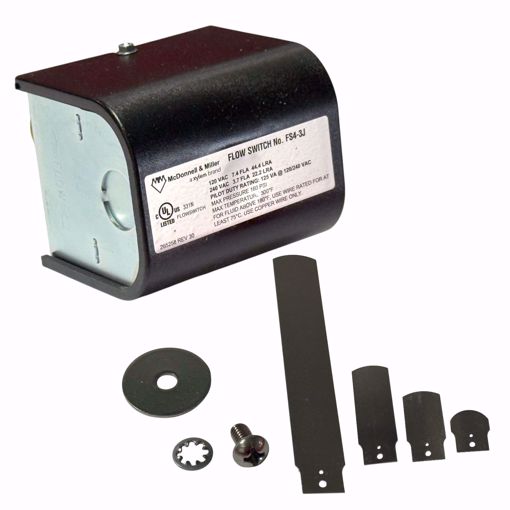

114610 MCDONNELL & MILLER FS4-3J FLOW SWITCH

114610 MCDONNELL & MILLER FS4-3J FLOW SWITCH - Series FS4-3J - 120VAC @ 7.4 FLA @ 44.4 LRA - 240 VAC @ 3.7 FLA @ 22.2 LRA - PILOT DUTY RATING 125 VA @ 120/240 VAC - MAX PRESSURE 160 PSI - MAX TEMP 300 F - FOR FLUID ABOVE 180 F USE WIRE RATED FOR AT LEAST 75 C USE COPPER WIRE ONLY Includes - Four stainless steel paddles included - 1", 2", 3" & 6" (25, 50, 80, & 150mm) Features - Universal design serves the widest variety of applications - For starting or stopping electrically operated equipment such as signal lights, alarms, motors, automatic burners, metering devices and others - Replacement for common flow switches from Johnson/Penn, Potter/Taco, Watts, Hydrolevel and other manufacturers - 1" NPT - Two electrical knock-outs allows connection from either end - Sensitivity adjusting screw makes flow adjustment easy - Single pole, double throw snap switch - Hardened stainless steel bearings minimize friction - Sealed Monel bellows
