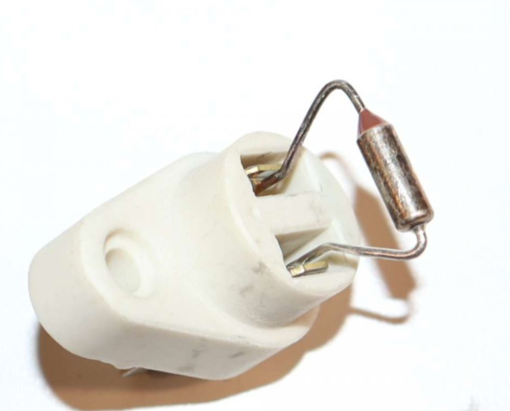

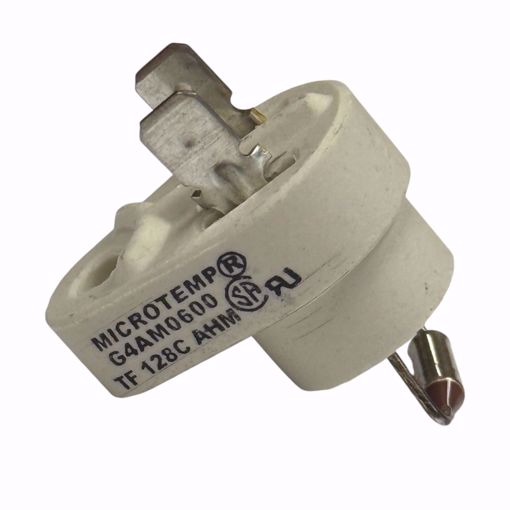

🔥 60567 H.B. Smith Flame Rollout Switch – 262°F (G4AM0600 / 4D4257A)
✅ Product Description
The 60567 H.B. Smith Flame Rollout Switch is a high-quality safety device engineered to protect gas-fired boilers from hazardous flame rollout conditions. Rated for 262°F, this switch ensures safe shutdown in the event of abnormal combustion, protecting both the boiler and surrounding area.
Compatible with a wide range of boilers, the 60567 can be used on all GB100, GV100 series H.B. Smith boilers, and Hydrotherm HW series (HW-50 through HW-200) as well as HV series models (HV-50 through HV-150). It is also equivalent to Hydrotherm BM-8784 and can replace Teledyne Laars R0012200 or Trane FUS00620.
✅ Key Features
-
✅ Temperature Rated 262°F – Designed to trigger at high temperature for safe boiler operation.
-
✅ Direct Replacement – Fits H.B. Smith GB100, GV100 series, and Hydrotherm HW/HV models.
-
✅ Cross-Compatible – Equivalent to Hydrotherm BM-8784, Teledyne Laars R0012200, and Trane FUS00620.
-
✅ Reliable Safety Device – Prevents damage and fire hazards from flame rollout.
-
✅ Durable Construction – High-quality switch for long-lasting performance.
📊 Specifications
| Specification | Detail |
|---|
| Model Number |
60567 |
| Alternate Numbers |
G4AM0600, 4D4257A |
| Temperature Rating |
262°F |
| Compatible Boilers |
H.B. Smith GB100, GV100 Series |
| Hydrotherm Models |
HW-50 to HW-200, HV-50 to HV-150 |
| Equivalent Parts |
Hydrotherm BM-8784, Teledyne Laars R0012200, Trane FUS00620 |
| Type |
Flame Rollout / Safety Switch |
| Application |
Gas-fired boilers |
| Brand |
H.B. Smith |
⚠️ Common Symptoms (When You Need This Rollout Switch)
-
Boiler repeatedly shuts down due to flame rollout.
-
Safety lockouts or error codes triggered by high temperature.
-
Visible flame or heat escaping from the combustion chamber.
-
Old or failing rollout switch causing inconsistent boiler operation.
❓ Frequently Asked Questions (FAQ)
Q: Will this switch fit my GB100 or GV100 boiler?
A: Yes, the 60567 is compatible with all GB100 and GV100 series boilers.
Q: Can it be used on Hydrotherm boilers?
A: Yes, it fits HW-50 through HW-200 and HV-50 through HV-150 models.
Q: What temperature does this switch trigger at?
A: Rated for 262°F, designed to safely shut down the boiler during flame rollout.
Q: Can it replace other brands?
A: Yes, it is equivalent to Hydrotherm BM-8784, Teledyne Laars R0012200, and Trane FUS00620.
🛒 Shopping Tips
-
🔍 Confirm Your Boiler Model – Ensure your boiler is compatible before ordering.
-
⚡ Power Off Before Replacement – Always disconnect electricity before installing the rollout switch.
-
🧰 Inspect for Damage – Look for visible wear, burn marks, or corrosion before installation.
-
💡 Test After Replacement – Verify proper operation and reset safety after installation.
-
🏆 OEM-Quality Safety – Use genuine or equivalent H.B. Smith parts for reliable protection.
