EZ-GAS NATURAL/PROPANE 10 AIR TUBE 150,000-275,000 BTU

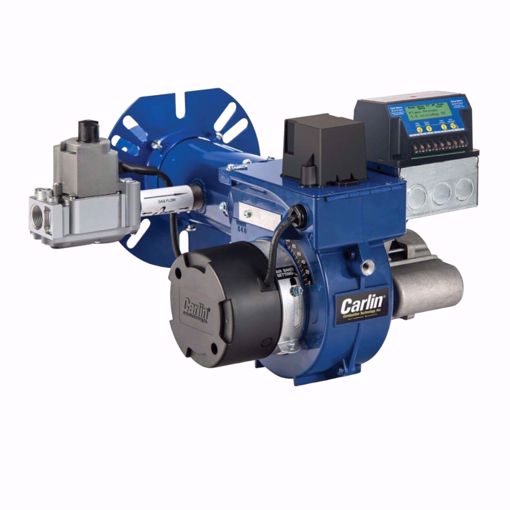

Carlin 9859210AFR1A EZGas Pro Gas Conversion Burner with 10" Air Tube 175,000 - 275,000 BTUH Includes - "A" diffuser plate: 175,000 - 275,000 BTUH Air Band: • 2-Slot: 175,000 - 275,000 BTUH Multi-Fit and Universal Burners include a Field-Drilled orifice. This orifice must be drilled in the field to suit the firing rate of the appliance. Converts Oil-Fired Appliances to Natural Gas or Propane Faster, Easier and More Cost Effective than Replacing the Heating Appliance UL Listed The Carlin EZGas Pro burner was designed to convert oil-fired appliances to natural gas or propane. When the existing oil appliance is in good operating condition, the EZGas Pro burner is fast and easy to install and provides a significantly less expensive alternative to replacing the heating appliance. The EZGas Pro fires refractory or non-refractory chambers and accommodates chimney vent, direct vent, or power vent applications. The 3 1/2" diameter air tube fits any heating appliance including furnaces, direct fired water heaters and pin-style, steel, and three-pass boilers. The EZGas Pro burner is a UL Listed conversion burner meeting the code requirements for gas conversions in most areas. High efficiency, compact flame pattern ensures clean, quiet operation Easy color-coded wiring Durable spark ignition with flame rod rectification Operates in low and fluctuating gas pressures Mixes fuel inside the combustion chamber for safe reliable operation. Air Tube rotates to accommodate gas line from left or right Advanced 60200FR Primary Control System • LED Indicators • Serviceman Reset Protection • Flame Signal Test Port • Alarm Contacts IMPORTANT The Carlin EZGas Pro burner should be installed or serviced only by licensed and trained professionals. Failure to do so will void the warranty.
