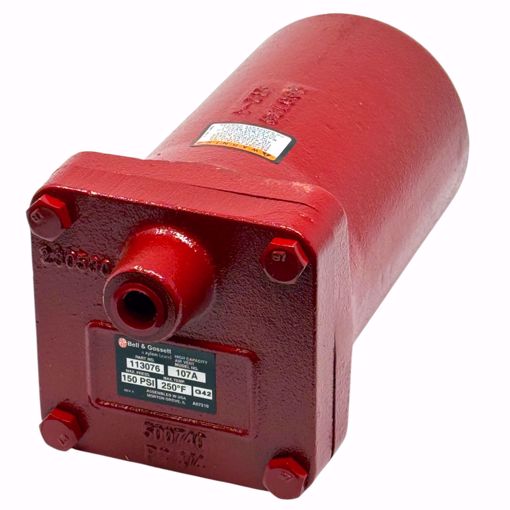

Bell & Gossett 113076 107A High Capacity Automatic Air Vent 3/4" Inlet X 3/8" Outlet
Bell & Gossett 113076 107A High Capacity Automatic Air Vent 3/4" Inlet X 3/8" Outlet
A rugged High Capacity Air Vent designed to purge free air from liquid systems at operating pressure up to 150 psig.
The Model 107A Air Vent has cast iron body and bonnet, with stainless steel, brass and EPDM internal components and is suitable for a maximum operating temperature of 250ºF.
The Air Vent has a
- 3/4" NPT inlet
- 3/8" NPT outlet.
- Connection Type: Threaded
- Thread Type: Female
- Max Temp (F): 250°F
- Max Pressure (PSI): 150
- Height: 9-5/8" Width: 4-1/2"
- Material: Cast Iron Internals: Non-Ferrous
- This replaces Bell & Gossett 107A and 107
