110196LF B & G B7-12 REDUCING VALVE 3/4" NPT SET, LEAD FREE

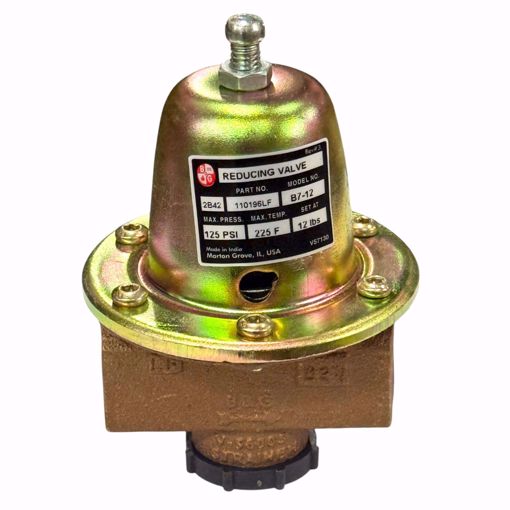

110196LF Bell & Gossett B7-12 3/4" FNPT Lead Free Water Pressure Reducing Valve 12 PSI - Model # B7-12 - Max working pressure 125 psi - Max operating temp 225 F - Factory pressure set 12 psig - Connection size 3/4" - Adjustable Range 10 to 25 psig - Body Material Brass - Connection Type: FNPT x FNPT Replaces - Bell & Gossett 110015, 110036, 110196 Also Replaces Sid Harvey B138-10A and 138-10R This low-pressure reducing valve is equipped with a low inlet pressure check valve and removable strainer. It is suitable for use in buildings with a maximum of three floors. Designed for filling hot water boilers and associated piping systems to a properly controlled pressure after boiler installation of system serving It is not a safety device and is not intended to be used as a water feed valve to control boiler water at a safe operating level. They are factory set at specified limits although adjustment is easily made. They are equipped with a built-in strainer and low inlet pressure check valve.
