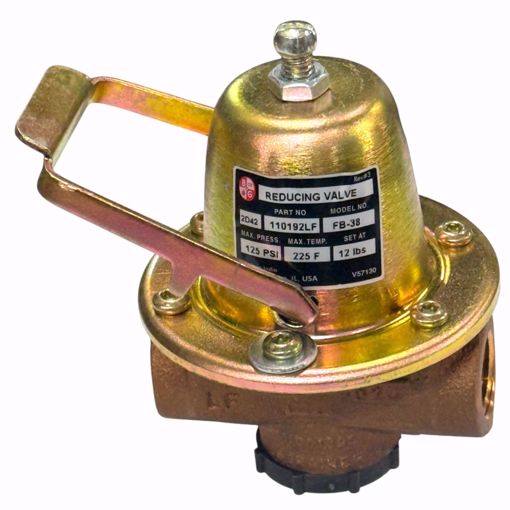

110192LF Bell & Gossett FB-38 Lead Free Pressure Reducing Valve 1/2" FNPT With Fast Fill
- Model # FB-38
- Size 1/2"
- Adjustable Pressure Range 10 to 25 PSIG
- Pressure Set Point Factory 12 PSIG
- Max Working Pressure 125 PSI
- Max Temp Range 225 F
- Connection Type: FNPT x FNPT
- Body Material Brass
Replaces Sid Harvey B138-4R & 110192
The Bell & Gossett Pressure Reducing Valve is designed for filling hot water boilers and associated piping systems to a properly controlled pressure after boiler installation or system servicing
B & G reducing valves protect heating and plumbing systems against excessive line pressures. They are factory set at specified limits although adjustment is easily made. Equipped with built-in-strainer and low inlet pressure check valve. Tail piece for union models is combination 1/2" cooper sweat and 1/2" male NPT
