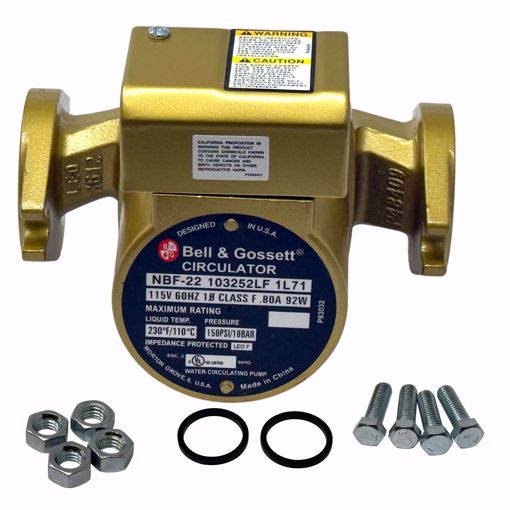

Bell & Gossett 103252LF Lead Free NBF-22 Bronze Circulator 1/25HP 115V
Flanges Are Not Included For Flanges see:
101011LF BRONZE FLANGE 3/4" (1 SET)
101012LF BRONZE FLANGE 1" (1 SET)
101013LF BRONZE FLANGE 1 1/4" (1 SET)
101014LF BRONZE FLANGE 1 1/2" (1 SET)
Specifications
Connection Type Flanged
Pump Type Booster
Construction Bronze Body (Lead Free)
Application Potable Water
Mounting Type In-Line
Horse Power 1/25 HP
Motor Phase Single
Hertz 60Hz
Motor RPM 2940 RPM
Voltage 115v
Max Temp 230°F
Face to Face Dimension 6-3/8"
Max. GPM @ Head 22 gpm @ 1 ft.
Best Efficiency GPM @ Head 11 gpm @ 7.5 ft.
Min. GPM @ Head1 gpm @ 14.5 ft.
Shut-Off 15 ft.
Replaces SLC-30B, SLC30B, 103204, 103252, NBF22, SLC-25B
