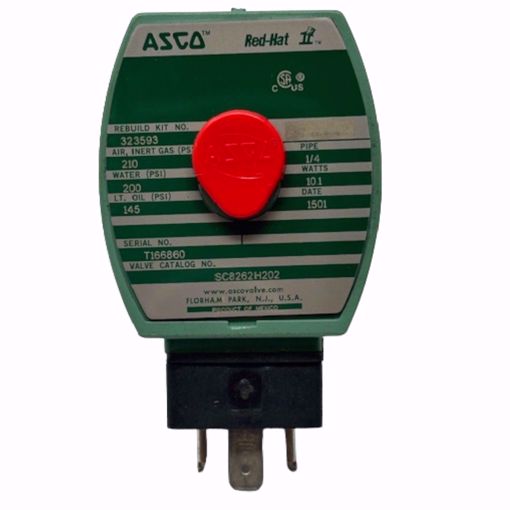

1/4NC 0-210#AIR200#WTR145#OIL

Manufacturer: Asco
- Valve Type High Flow - Valve Ways 2-Way - Valve Positions 2-Position - Brass - Nominal Pipe Size 1/4 in - Voltage 110V AC; 120V AC - Wattage 10.1 W - 50/60Hz - Coefficient of Volume (Cv) 0.52 - Orifice Diameter 5/32 in - Max. Operating Pressure Differential - Water 200 psi - Max. Operating Pressure Differential - Light Oil 145 psi - Max. Operating Pressure Differential - Air/Inert Gas 210 psi - Max. Fluid Temperature 180 °F - Ambient Temperature Range 14 F to 140 F - IP Rating IP66 - Valve Configuration Normally Closed 2-way/2-position general purpose solenoid valves have an inlet and an outlet port and operate in two states or positions: open or closed. Normally closed solenoids remain shut until energized to open and allow flow.
SKU: ASCO:SC8262H202
Product Availability: 1
$132.03
This product must be purchased in increments of 1
i h

- Valve Type High Flow
- Valve Ways 2-Way
- Valve Positions 2-Position
- Brass
- Nominal Pipe Size 1/4 in
- Voltage 110V AC; 120V AC
- Wattage 10.1 W
- 50/60Hz
- Coefficient of Volume (Cv) 0.52
- Orifice Diameter 5/32 in
- Max. Operating Pressure Differential - Water 200 psi
- Max. Operating Pressure Differential - Light Oil 145 psi
- Max. Operating Pressure Differential - Air/Inert Gas 210 psi
- Max. Fluid Temperature 180 °F
- Ambient Temperature Range 14 F to 140 F
- IP Rating IP66
- Valve Configuration Normally Closed

2-way/2-position general purpose solenoid valves have an inlet and an outlet port and operate in two states or positions: open or closed. Normally closed solenoids remain shut until energized to open and allow flow.

Products specifications
Manufacturer Asco
