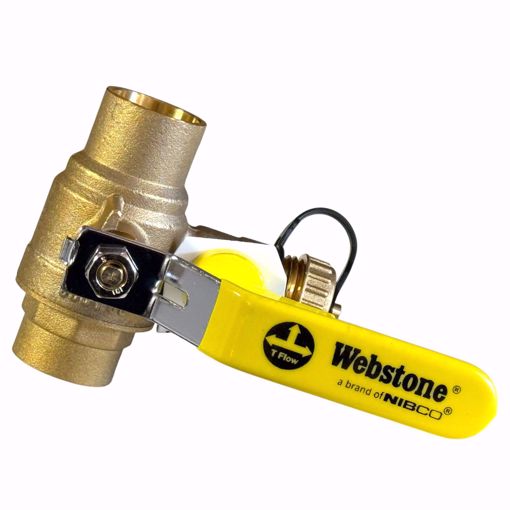

⚙️ H-50614W WEBSTONE 1" CXC LF Ball Drain – 5061W
The WEBSTONE H-50614W Ball Drain is a versatile, lead-free solution designed to simplify system maintenance by allowing fast isolation and drainage of any portion of your piped system. Engineered for efficiency and durability, it replaces multiple components, eliminates leak paths, and is compatible with a variety of plumbing connections.
✅ Key Features
-
✅ 1" x 1" pipe size for standard residential and commercial applications
-
✅ Eliminates assembly needed to isolate and drain portions of the system
-
✅ Reversible lever handle for added installation flexibility
-
✅ Exclusive adjustable flow path allows draining from either side of the ball
-
✅ Saves time: Reduces maintenance by 27 minutes per drain
-
✅ Replaces 4 components and eliminates 3 leak paths
-
✅ Multiple connection types: FIP, SWT, PRS, PEX
-
✅ Certified: NSF/ANSI/CAN 61 & 372, NSF/ANSI 14
-
✅ Hose drain ready for easy attachment
-
✅ Full port design for maximum flow
-
✅ Durable brass construction with lever-style handle
📊 Specifications
| Specification | Detail |
|---|
| Manufacturer |
WEBSTONE |
| Model |
H-50614W / 5061W |
| Pipe Size |
1" x 1" |
| Connection Type |
C x C |
| Material |
Brass, Lead-Free |
| Handle Style |
Lever, reversible |
| Port Type |
Full Port |
| Flow Path |
Adjustable / reversible |
| Drain Type |
Hose drain capable |
| Certifications |
NSF/ANSI/CAN 61 & 372, NSF/ANSI 14 |
| Application |
Residential, commercial, and industrial plumbing systems |
| Benefits |
Simplifies drainage, reduces leak paths, saves installation/maintenance time |
⚠️ Common Symptoms / Issues
-
Leaks at threaded or soldered connections
-
Difficulty isolating or draining a section of piping
-
Reduced flow due to blocked or partially closed ball
-
Corrosion or wear on lever handle over time
-
Incompatible connection types causing improper seal
💬 Frequently Asked Questions (FAQ) ❓
Q: What does “LF” mean in the model name?
A: LF stands for Lead-Free, compliant with NSF/ANSI 372 for safe drinking water systems.
Q: What is “CXC” connection type?
A: CXC indicates copper sweat connections on both ends, suitable for soldered pipe installation.
Q: Can this ball drain be reversed?
A: Yes, the lever handle is reversible, and the adjustable flow path allows draining from either side of the ball.
Q: What certifications does it meet?
A: Certified to NSF/ANSI/CAN 61 & 372 for lead-free drinking water safety and NSF/ANSI 14 for plastic piping compatibility.
Q: Can I attach a hose for draining?
A: Yes, it includes a hose drain option for easy water removal.
🛒 Shopping Tips
-
Confirm your system uses 1" pipe connections compatible with CXC fittings.
-
Ideal for quick maintenance, repair, or system isolation.
-
Saves both time and effort compared to traditional multi-component drains.
-
Use with residential, commercial, and industrial piping systems.
