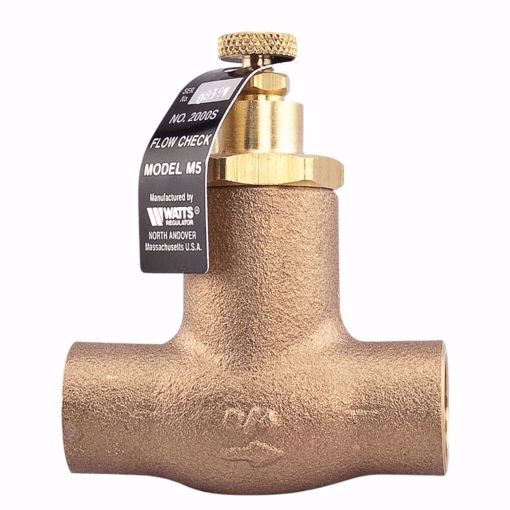

0856764 WATTS 0856764 2000S-M5 1" SWEAT FLOW CHECK VALVE

Manufacturer: Watts

- Body Material Bronze - Straight Body - Inlet Connection Size 1 IN - Inlet Connection Type Socket - Maximum Operating Temperature 250 F - Maximum Working Pressure 50 PSI - Outlet Connection Size 1 IN - Outlet Connection Type Socket - Series 2000S-M5 Features - Provides positive gravity shutoff when circulator is not running - Checks easily opened for gravity circulation - Solder inlet and outlet connections - Iron body construction This 1 inch two-way straight pattern universal flow check valve is for use in commercial and residential hydronic heating systems to provide positive shutoff when circulator is not running, preventing the flow of water to radiation units. It is easily opened for gravity circulation. It combines angle and horizontal checks and consists of an iron body construction with female threaded connections, bronze seat, and brass center guide. The maximum pressure is 50 psi (344.8kPa).

SKU: WATTS:0856764

Product Availability: Out of stock

$100.15

This product must be purchased in increments of 1

Qty:

i h

- Body Material Bronze
- Straight Body
- Inlet Connection Size 1 IN
- Inlet Connection Type Socket
- Maximum Operating Temperature 250 F
- Maximum Working Pressure 50 PSI
- Outlet Connection Size 1 IN
- Outlet Connection Type Socket
- Series 2000S-M5

Features
- Provides positive gravity shutoff when circulator is not running
- Checks easily opened for gravity circulation
- Solder inlet and outlet connections
- Iron body construction

This 1 inch two-way straight pattern universal flow check valve is for use in commercial and residential hydronic heating systems to provide positive shutoff when circulator is not running, preventing the flow of water to radiation units. It is easily opened for gravity circulation. It combines angle and horizontal checks and consists of an iron body construction with female threaded connections, bronze seat, and brass center guide. The maximum pressure is 50 psi (344.8kPa).

Products specifications

Manufacturer	Watts
