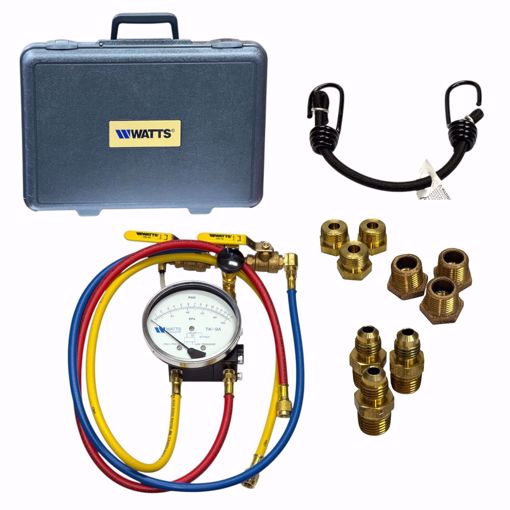

0385496 WATTS TK-9A BFP TESTER ANALOG
Backflow Preventer Test Kit
Features
- Comes with adapter fittings to easily connect to all testable assemblies
- Rugged, weatherproof gauge design
- Accuracy is +/-2%
- Shock-resistant carrying case for easy handling and access
Feature Specs
• 41⁄2" (114mm) diameter face gauge with dual scale (0 - 15psi/0-1 bar)
• Test valves:
(2) ball valves
(1) needle valve for precise metering
• Adapters:
(3) 1⁄4" threaded coupling adapters
(3) 1⁄2" x 1⁄4" bushings
(3) 3⁄4" x 1⁄4" bushings
• Hoses: (3) 3' (914mm) hoses with female-threaded swivel couplings
• 16" (406mm) securing strap
Other Features
• Moisture resistant operation manual
• A sturdy form fitting Carrying Case
• Extra fittings for application to other valve types
Pressure-Temperature
- Maximum Working Pressure: 175psi (12.1 bar)
- Maximum Working Temperature: 210°F (98°C)
Gauge Specs
- Part number 1516-E1003
- Description 1516DG-5AV-4.5L
- Max Pressure 1500 PSI (100 bar)
- Max Temp 200 F (93 C)
- Wetted Parts Alum
- Seal Buna
- Port 1/4" NPT
- Range 0 to 100 KPA / 0 to 15 PSID
Model TK-9A Backflow Preventer Test Kit is a compact portable device made for testing all reduced pressure zone backflow prevention assemblies, double check valve assemblies, pressure vacuum breakers and spill-resistant vacuum breakers to USC and ASSE 5000 Standards. The TK-9A comes with adapter fittings to easily connect to all testable assemblies. Rugged weatherproof gauge design with durable 600 psi ball valves for on/off use, and needle valves for precise metering. Accuracy is +/- 2%. The unit includes a shock resistant carrying case for easy handling and accessibility.
