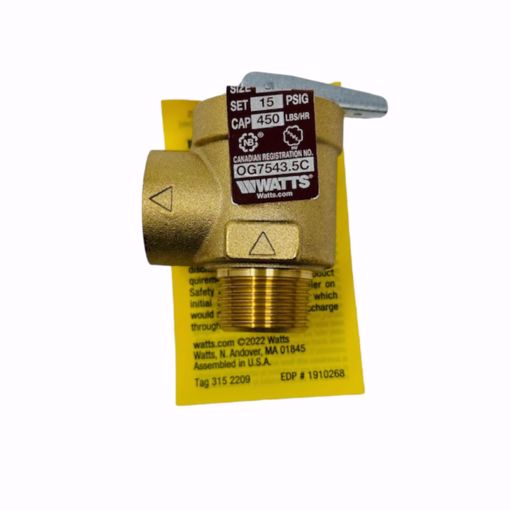

0346045 415 3/4 15# 450#/HR STEAMRELF

Brass Material Body Inlet Connection Size 3/4 IN Inlet Connection Type Male Threaded Inlet Thread Type NPT Maximum Temperature-Fahrenheit 250 F Maximum Working Pressure-PSI 10 Outlet Connection Size 3/4 IN Outlet Connection Type Female Threaded Outlet Thread Type NPT Pressure Relief Setting-PSI 15 Pressure Steam Discharge Capacity 450 pounds per hour at 15 PSI This 3/4 x 3/4 inch dependable, low cost, high capacity safety relief valve is designed for low pressure, steam heating boilers and process equipment used in industrial and commercial applications. It features a brass body, stainless steel spring, top guided stem, NPT threaded male inlet by threaded female outlet (drain) connection and a non-stick PTFE disc-to-metal seat to assure positive shutoff. The factory pressure setting for saturated steam service is set at 15 psi. This valve has an ASME, section IV rating. Pressure for saturated steam service set at 15 psi Brass body Male NPT screwed inlet and female NPT screwed outlet Top guided stem and non-stick PTFE disc to metal seat assures positive shutoff ASME, section IV rating Used for industrial and commercial low pressure applications High capacity Seat located above drain Stainless steel spring
