WATTS 0259930 RELIEF VALVE, 140X-9-150# 1 INCH FXF 3,085,000

Manufacturer: Watts

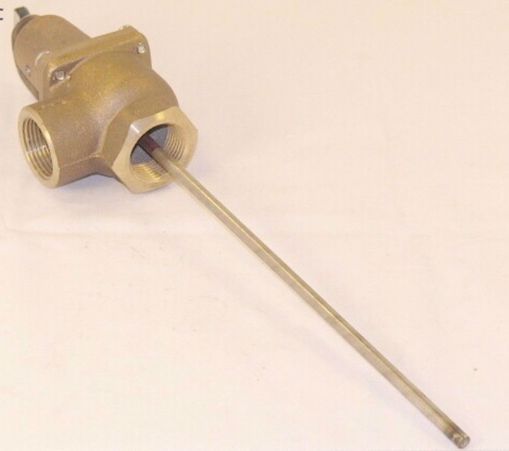

1 IN Bronze Automatic Reseating Temperature and Pressure Relief Valve, 150 psi, 210 degree F, 9 IN Thermostat, Female Connections

SKU: WATTS:0259930

Product Availability: 2

$769.30

This product must be purchased in increments of 1

Qty:

i h

This 1 inch bronze automatic reseating temperature and pressure relief valve has a 9 inch thermostat and is installed directly in tank tapings. It is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. This valve features a bronze body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and a test lever. The temperature relief is 210 degrees and the pressure relief is 150 psi.

Features

Thermo-bonded thermostat
Tamper resistant bonnet screws
9 Inch thermostat length
Non-mechanical seat to disc alignment

Specifications
Body Material	Bronze
Brand	Watts
Buy American Act Compliant	YES
EAN	098268012576
Inlet Connection Size	1 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	NO
Maximum Temperature-Fahrenheit	210
Outlet Connection Size	1 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0259930
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	150
Protection Type	Temperature And Pressure
Series	140
Temperature Relief-Fahrenheit	210
Thermostat Material	Stainless Steel
Thermostat Probe Length	9 IN

Products specifications

Manufacturer	Watts
