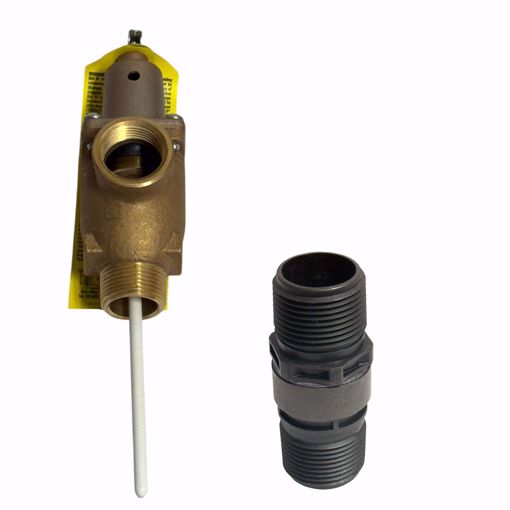

0163725 WATTS 1 40XL-4 150/210 FS
- Max Temp 210 F
- Bronze Body
- Pressure Set Point 150 PSI
- Connection type Threaded
- CSA Rating (BTU/HR): 500000
- Thermostat Length 4"
- Size 1"
- Outlet type FNPT
Features:
- Features a flood sensor with Sentry Plus Alert technology to detect excessive water discharges from the relief valve
- Requires purchase of activation kit to activate sensor
- Bronze body
- Tamper resistant bonnet screws
- 4 Inch coated thermostat length
- Non-mechanical seat to disc alignment
- Set pressure: 150 psi
Comes With Discharge Line Flood Sensor
0163725 & F163725 same model
F163725 is the newer model that comes with Discharge Line Flood Sensor
Flood Sensor
The relief valve flood sensor is intended for use with temperature and pressure as well as pressure only relief valves mounted to boilers or hot water heaters. The sensor can be installed directly into the relief valve outlet or in the discharge line consisting of copper tubing from the relief valve to the sensor. At any installation point, the sensor must be installed at a 45-degree angle. The sensor detects flowing discharge from the relief valve and energizes a relay signaling flood detection.
Features
• Easy-to-install flood sensor for detection of flowing discharge from a boiler or hot water heater
• Temperature ranges from -40°F to 250°F
• NPT end connections
• Available in six sizes to accommodate relief valve outlet diameters ¾ to 2½ inches
• Flood alerts feature activated with add-on connection kit, available for BMS
