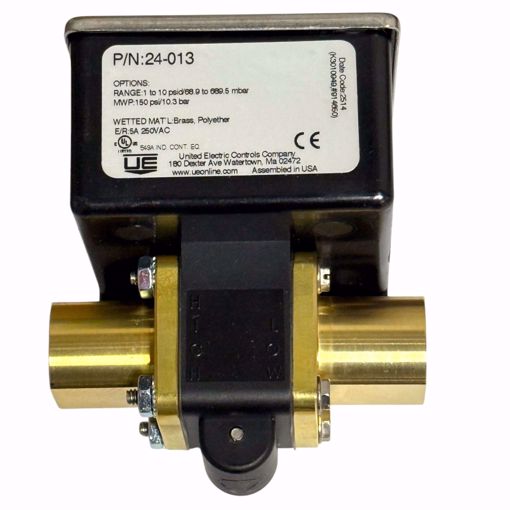

24-013 United Electric Differential Pressure Switch – Range 1 to 10 PSI

The 24-013 United Electric Differential Pressure Switch is a precision switch designed for monitoring and controlling pressure differences in hydronic, HVAC, and industrial systems. With a range of 1 to 10 PSI, it ensures reliable operation, accurate system performance, and protection of equipment.

Built for durability, the 24-013 is suitable for a variety of applications requiring SPDT contact switching, precise actuation, and high-pressure tolerance.

Key Features ✅

• ✅ Differential pressure range: 1 to 10 PSI (68.9 to 689.5 mbar)

• ✅ Maximum working pressure (MWP): 150 PSI / 10.3 bar

• ✅ Temperature range: 30°F to 160°F

• ✅ Contact rating: 5 Amps, SPDT (Single Pole Double Throw)

• ✅ High accuracy: ±1%

• ✅ 1/4" connection size for easy installation

• ✅ Voltage: 240 VAC

Technical Specifications 📝

Common Symptoms Solved ⚡

• ❌ Inaccurate system pressure readings

• ❌ Equipment running outside safe pressure limits

• ❌ Pressure differential causing pump or fan inefficiency

• ❌ System trips or failures due to faulty pressure sensing

• ❌ Unstable operation in hydronic or HVAC applications

Shopping Tips 🛒

• ✅ Verify pressure range – Ensure your system requires 1–10 PSI differential.

• ✅ Check connection type – 1/4" size fits most standard installations.

• ✅ Voltage compatibility – Rated for 240 VAC.

• ✅ Use SPDT contact – Allows for versatile wiring and control.

• ✅ Inspect system conditions – Suitable for 30°F–160°F operating temperature range.

Frequently Asked Questions (FAQ) ❓

Q: What is the pressure range for the 24-013 switch?
✅ 1–10 PSI (68.9–689.5 mbar).

Q: What type of contacts does it use?
✅ SPDT (Single Pole Double Throw) with a 5 Amp rating.

Q: What is the maximum working pressure?
✅ 150 PSI / 10.3 bar.

Q: What temperature range can it handle?
✅ 30°F to 160°F.

Q: What is the connection size?
✅ 1/4" standard connection for easy installation.
