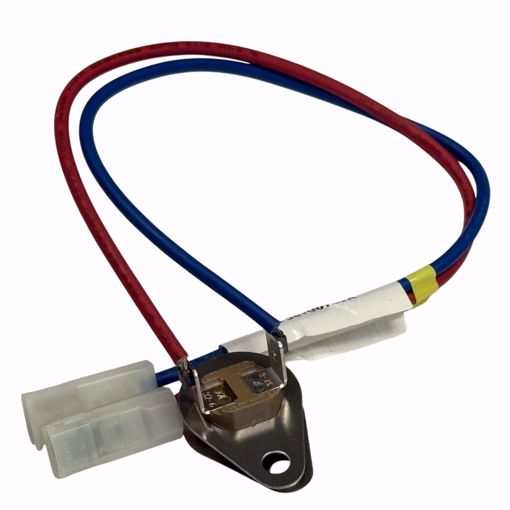

CNT06001 TRANE CONTROL TC-01 120°F Rated Limited Control
🔧 Product Overview
The Trane CNT06001 Control TC-01 is a precision-engineered limit control designed to monitor and regulate system temperatures within Trane HVAC and furnace systems. Rated for 120°F, this control ensures optimal operation and safety by preventing overheating and protecting internal components from damage. Built to exact OEM standards, the CNT06001 offers dependable temperature regulation, long-lasting durability, and seamless compatibility for both maintenance and replacement needs.
✅ Key Features
✅ Reliable temperature limit protection for Trane heating and cooling systems
✅ 120°F rated design ensures accurate thermal cutoff and system safety
✅ Constructed with high-heat resistant materials for extended service life
✅ Direct OEM replacement — no modifications needed
✅ Compact and rugged design simplifies installation in tight enclosures
✅ Helps maintain efficiency and longevity of HVAC components
✅ Factory-tested for consistent performance and reliability
📊 Specifications
| Specification | Detail |
|---|
| Manufacturer |
Trane |
| Part Number |
CNT06001 |
| Model |
TC-01 |
| Type |
Temperature / Limit Control |
| Temperature Rating |
120°F |
| Application |
HVAC systems, furnaces, air handlers |
| Voltage |
120V rated (varies by system configuration) |
| Function |
Prevents overheating by cutting off power at set temperature |
| OEM Replacement |
Yes |
| Operating Environment |
Designed for high-temperature applications |
⚠️ Common Symptoms of a Faulty Control
-
System overheats or fails to shut off at the right temperature
-
HVAC cycles irregularly or fails to start
-
Blower runs continuously after heating cycle
-
Inconsistent temperature in conditioned spaces
-
Visible burn or corrosion marks on terminals
💡 Frequently Asked Questions (FAQ)
Q: What does “120°F rated” mean?
A: It’s the temperature threshold where the control opens the circuit to protect the system from overheating.
Q: Is this compatible with all Trane furnaces?
A: It fits most Trane and American Standard models using a 120°F limit control. Always confirm your unit’s part number.
Q: Can I install this myself?
A: Installation should be performed by a licensed HVAC technician to ensure safety and accuracy.
Q: When should it be replaced?
A: Replace every 5–7 years or sooner if malfunctioning or showing signs of wear.
🛒 Shopping Tips
-
Always match the part number (CNT06001) before ordering
-
Verify your unit’s model and serial for compatibility
-
Keep a backup control for quick replacement in critical systems
-
Store in a dry, clean area to prevent premature corrosion
