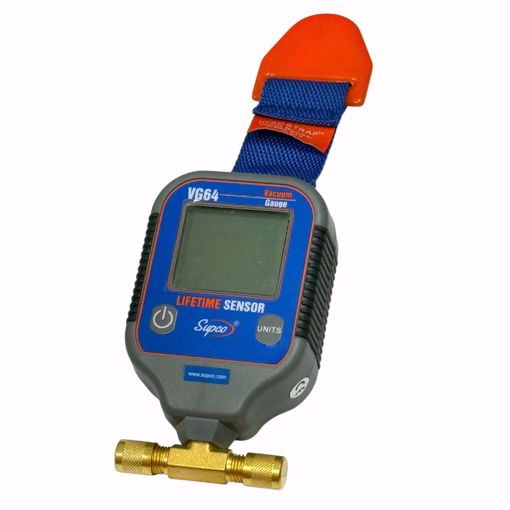

VG64 Digital Vacuum Gauge
Suitable for field or laboratory use, the VG64 delivers high precision at a low price.
Features/Benefits
• Ultra fine resolution: (1 Micron when vacuum = 200 Microns)
• Reads vacuum in 7 international units
• Display updates every 1/2 second
• Convenient built in hanger
• Cleaning port provides quick cleaning and drying of sensor
Accessories
PART NO.
10475 120 V Power Adapter
MFDCASE Soft Pouch
VGC Vacuum Guage Coupler
Resolution
0-200: 1 Micron
201-500: 5 Microns
501-1,000: 10 Microns
1,001-2,000: 50 Microns
2,001-5,000: 250 Microns
5,001-8,000: 500 Microns
8,001-12,000: 1,000 Microns
Operating Temperature 35°F to 125°F (2°C to 52°C)
Range
Overpressure 500 PSI max
Accuracy +/-10%
Power Source 9 Volt Alkaline Battery (not included)
Continuous Usage 30 Hours (approximate)
Auto Shutoff After 10 minutes when vacuum reading is
above 12,000 Microns (12 Torr)
SPECIFICATIONS
Sensor Type Thermistor, Connector Type Standard ¼ inch male flare fitting.
Vacuum Range 0 – 12,000 Microns (0 – 1,600 Pascals) with vacuum increasing/decreasing
indicator when above 12,000 Microns. Scale Microns, PSI, InHg, milliBars, Pascals, Torr, milliTorr
