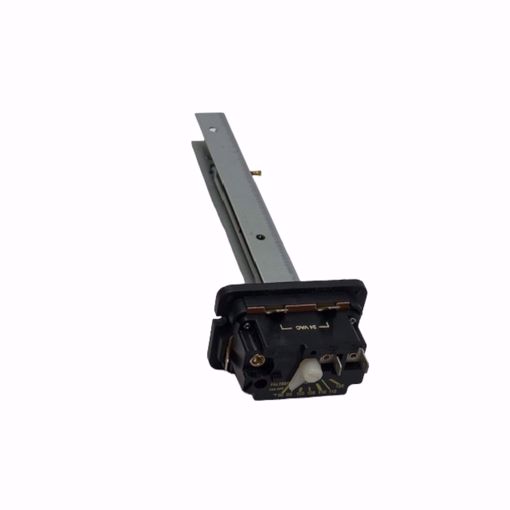

Camstat FALTS57C05T120A 7" Fan & Limit Control With Time Delay
Product Specifications:
- Length: 7"
- Fan off temperature: 90°F to 120°F
- Limit temperature: 150°F to 250°F
- Limit differential: 30°F
- Pilot Duty: 40 VA @ 30 and 120
- Electrical Rating: "Heat Assist" - 0.08 Amps @ 24 VAC
Product Features:
- Time Start Fan Control for "Heat Assist"
- Time delay turns ON blower as function of time and/or temperature after "Call for Heat"
- Turns OFF blower as a function of temperature at dial setting for fan
- Adjustable furnace temperature limit to match existing setting
- SPST Switch
- UL Recognized
- CSA Approved
The FALTS Series Control is a combination time-temperature-start blower control and limit control. It is designed to control both the blower (at adjustable setting) while limiting the safe operating temperature of the furnace (at predetermined Settings) to meet individual manufacturer requirements.
It incorporates the best features of both the temperature actuated and time delay actuated blower controls. This universal replacement combination control is equipped with ¼” spade quick connect terminals and adjustable knobs to permit temperature settings to conform to the unit being replaced. For replacements, check the cut-out temperature of the FALTS unit that is removed from the furnace and set the “Fan Off” pointer and limit on the replacement unit to match these temperature settings.
