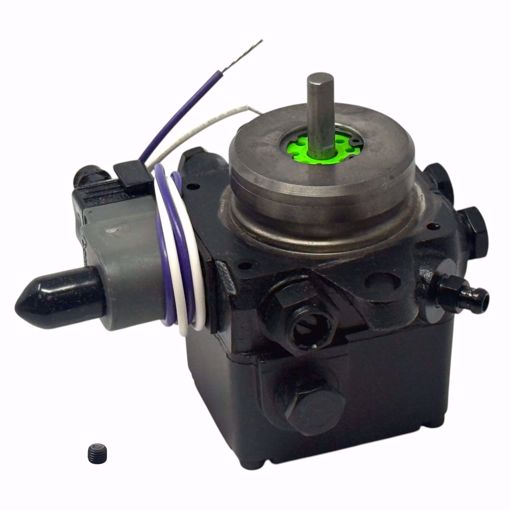

Suntec B2TA-8850N Two Stage Oil Pump 3450 RPM, 10 GPH
Specifications:
Mounting Flange mounting
Connection threads
Inlet and return 1/4 NPTF
Nozzle outlet 1/8 NPTF
Pressure gauge port 1/8 NPTF
Bleeder valve port 1/8 NPTF
Valve function Pressure regulation
Cut-off Solenoid
Strainer 7 GPH
Shaft 5/16 in
By-pass plug Not inserted in return port, for one pipe system.
To be inserted in return port with a 5/32 Allen key for two-pipe system
Hydraulic Data
Nozzle pressure range 100 - 200 psi (low fire)
200 - 300 psi (high fire)
Delivery pressure setting 300 psi
Capacity 10 GPH
Oil temperature 50 - 115 F
Inlet/return pressure 10 psi max
Suction height Single pipe : 6" Hg max. vacuum, two-pipe : 17" Hg max. vacuum, to prevent air separation from oil
Rated speed 3450 rpm max
Solenoid Valve Characteristics
Solenoid valve voltage 110 - 120 V 50/60 Hz
Consumption 9 Watts
Ambient temperature 50 - 115 F
Certified cUL and UL
B2TA8850N, B2TA8850 B2TA-8850
Specifications:
B - Two Stage
2- 3450 RPM
T - 23 GPH
A- R.H. Rotation - R.H. Nozzle
88 - Hub 54 mm, Lip Seal - 2 STEP SOLENOID NON-CUTOFF
50 - Mounting Style and Specialty Pumps
