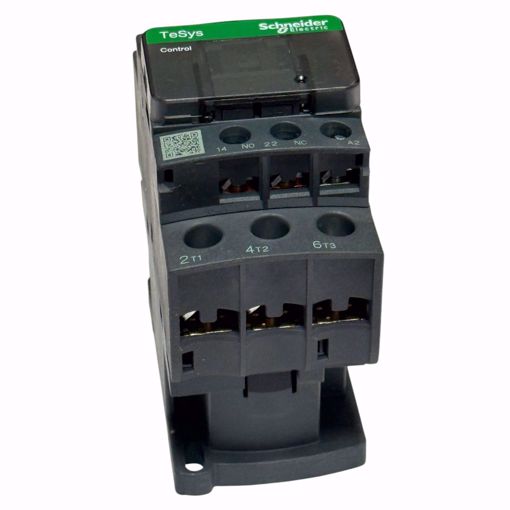

120V 32AMP CONTACTOR

Manufacturer: Square D

LC1D32G7 SQUARE D 120V 32AMP CONTACTOR - Nominal Coil Voltage @ 60Hz1 20V AC - Maximum Voltage Rating 690V AC - Horsepower @ Single Phase - 120V AC2 hp - Horsepower @ Single Phase - 240V AC 5 hp - Horsepower @ Three Phase - 208V AC7-1/2 hp - Horsepower @ Three Phase - 240V AC 10 hp - Horsepower @ Three Phase - 480V AC 20 hp - Horsepower @ Three Phase - 600V AC 30 hp - IP20 - Temp Range -40 to 140 F - 3 Poles - 120V AC Coil Voltage - 50/60Hz - Full Load Current - Inductive 32 Amps - Full Load Current - Resistive 50 Amps - Auxiliary contact composition 1 NO + 1 NC - Mounting Support Rail & Plate

SKU: SQUARE D:LC1D32G7

Product Availability: 8

$287.55

This product must be purchased in increments of 1

Qty:

i h

LC1D32G7 SQUARE D 120V 32AMP CONTACTOR

- Nominal Coil Voltage @ 60Hz1 20V AC
- Maximum Voltage Rating 690V AC
- Horsepower @ Single Phase - 120V AC2 hp
- Horsepower @ Single Phase - 240V AC 5 hp
- Horsepower @ Three Phase - 208V AC7-1/2 hp
- Horsepower @ Three Phase - 240V AC 10 hp
- Horsepower @ Three Phase - 480V AC 20 hp
- Horsepower @ Three Phase - 600V AC 30 hp
- IP20
- Temp Range -40 to 140 F
- 3 Poles
- 120V AC Coil Voltage
- 50/60Hz
- Full Load Current - Inductive 32 Amps
- Full Load Current - Resistive 50 Amps
- Auxiliary contact composition 1 NO + 1 NC
- Mounting Support Rail & Plate

Products specifications

Manufacturer	Square D
