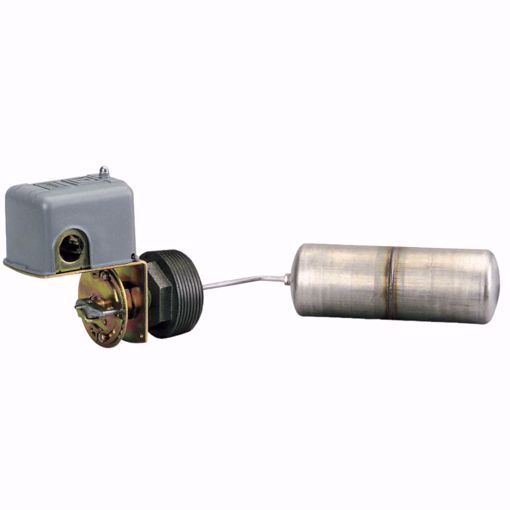

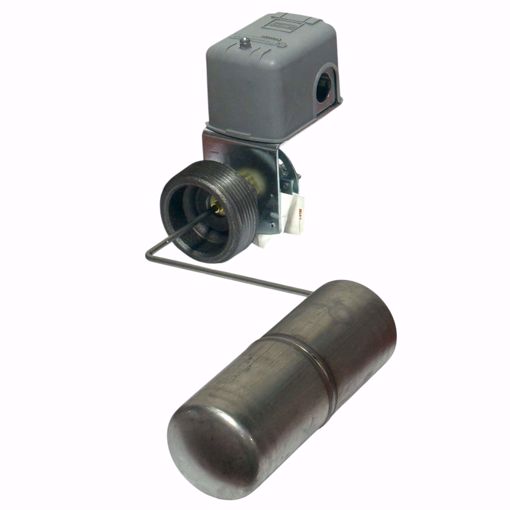

9037HG32 SQUARE D CLOSED TANK FLOAT SWITCH 2" NPT
- Brand: TELEMECANIQUE SENSORS
- Manufacturer Part Number: 9037HG32
- Series: 9037H
- Body Material: Steel
- Contact Form: DPST-2NC
- Electrical Connection Type: Screw Clamp
- Float Diameter: 2.58"
- Float Length: 7.13"
- Float Travel: 9-1/2"
- Float Material: Stainless Steel
- Float Rod Angle 90 Degrees
- Float Position: Left
- Horsepower @ Single Phase - 120V AC2 hp
- Horsepower @ Single Phase - 240V AC3 hp
- Horsepower @ Three Phase - 240V AC5 hp
- Mounting Style Closed Tank Vertical
- Nema 1
- Operating Temp Range: -22 to 220 F
- Stem Material Stainless: Steel
- Stem Thread Size: 2-1/2" MNPT
- Switch Closes on Rise
- 575V
- Max 50 PSI
These float switches mount through the holes on the sides. They help monitor liquid levels in applications with limited vertical spaces
Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged
