FLOATSWITCH 50#MAX CLOSE/RISE

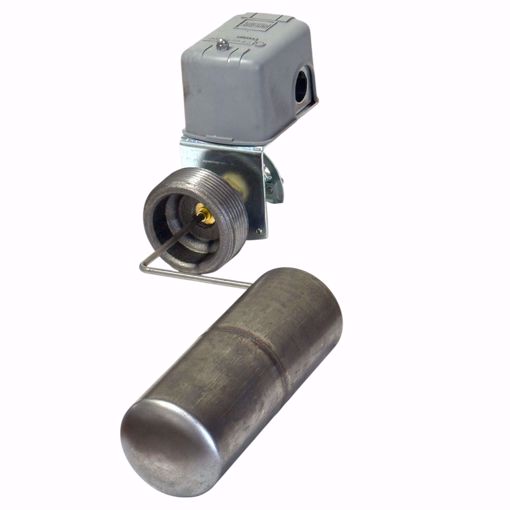

9037HG30Z20 SQUARE D FLOATSWITCH 50#MAX CLOSE/RISE - Device short name 9037H - Tank Connection Size: 2-1/2" MNPT - Max. Voltage: 600V - Float Dia.: 2.58" - Max Pressure 50 PSI - Float Travel 4-1/2" - Electrical connection Screw-clamp terminals, clamping capacity: 10 AWG - Contact operation Contacts close on liquid rise - Float movement 4.25...8.25 in adjustable - Float position Left - Float rod angle 90° (offset) - Short-circuit protection 20 A cartridge fuse, type gG - Local signaling with external pointer - Product destination For closed tank - Device mounting Screw-in bushing - Cable entry number 3 knockouts for 1/2" conduit conforming to UL 508 - Contacts type and composition 2 NC, snap action, DPST-DB, Form YY Motor Power kW - 1.5 KW (2 hp) at 115 V AC, 1 phase - 2.2 KW (3 hp) at 115 V AC, 3 phases - 2.2 KW (3 hp) at 230 V AC, 1 phase - 3.7 KW (5 hp) at 230 V AC, 3 phases - 0.75 KW (1 hp) at 460 V AC, 3 phases - 0.75 KW (1 hp) at 475 V AC, 3 phases - 0.18 KW (0.25 hp) at 32 V DC - 0.37 KW (0.5 hp) at 115 V DC - 0.37 kW (0.5 hp) at 230 V DC Features - Viton Packing, Suitable for Applications Up To 250 Deg - Includes: Viton Packing - Rod and Float Rod Angle: 90 Degrees
