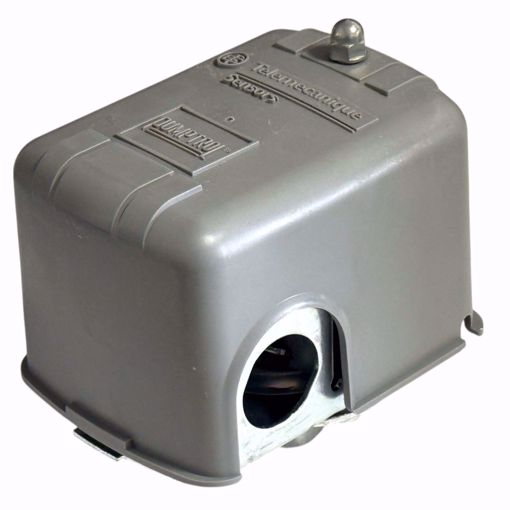

9013FHG2J27 SQUARE D PUMPTROL AIR COMPRESSOR PRESSURE SWITCH 20-100 PSI

Manufacturer: Square D

9013FHG2J27 SQUARE D PUMPTROL AIR COMPRESSOR PRESSURE SWITCH 20-100 PSI - Brand: TELEMECANIQUE SENSORS - Series9013FH - Manufacturer Part Number9013FHG2J27 - AC Contact Rating 10 A @ 575 V - Actuator Style Diaphragm - Contact Form 2NC - Differential Pressure - Maximum20 PSI - Factory Off Setting 100 PSI - Factory On Setting 80 PSI - Horsepower @ Single Phase - 120V AC1-1/2 hp - Horsepower @ Single Phase - 240V AC2 hp - Horsepower @ Three Phase - 240V AC3 hp - Horsepower @ Three Phase - 480V AC1 hp - NEMA 1 - Operating Temp Range -33 to 257 F - Pressure Range 40 to 100 PSI - Pressure Connection Type 1/4" FNPS Electrical connection: - Screw-clamp terminals 10 AWG - Screw-clamp terminals 5.261 mm² Material - Polypropylene Cover Noryl thermoplastic resin or equivalent Cover

SKU: SQUARE D:9013FHG2J27

Product Availability: Out of stock

$75.73

This product must be purchased in increments of 1

Qty:

i h

9013FHG2J27 SQUARE D PUMPTROL AIR COMPRESSOR PRESSURE SWITCH 20-100 PSI

- Brand: TELEMECANIQUE SENSORS
- Series9013FH
- Manufacturer Part Number9013FHG2J27
- AC Contact Rating 10 A @ 575 V
- Actuator Style Diaphragm
- Contact Form 2NC
- Differential Pressure - Maximum20 PSI
- Factory Off Setting 100 PSI
- Factory On Setting 80 PSI
- Horsepower @ Single Phase - 120V AC1-1/2 hp
- Horsepower @ Single Phase - 240V AC2 hp
- Horsepower @ Three Phase - 240V AC3 hp
- Horsepower @ Three Phase - 480V AC1 hp
- NEMA 1
- Operating Temp Range -33 to 257 F
- Pressure Range 40 to 100 PSI
- Pressure Connection Type 1/4" FNPS

Electrical connection:
- Screw-clamp terminals 10 AWG
- Screw-clamp terminals 5.261 mm²

Material
- Polypropylene Cover Noryl thermoplastic resin or equivalent Cover

Products specifications

Manufacturer	Square D
