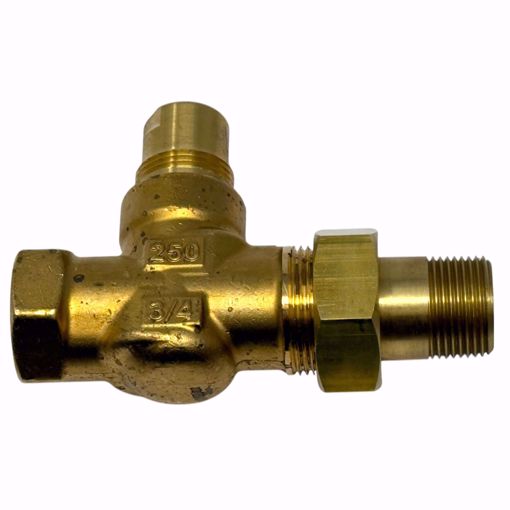

3/4FXUM N/O 6.3CV LINEAR BODY

Manufacturer: Siemens

- 2 Way - Stroke 7/32" - Connection 3/4" - Brass Body - Temp Range 20 to 250 F - 6.3 Cv - Normally Open The Powermite 599 Series ANSI Class 250 MT Series two-way valve bodies work with any MT Series pneumatic or electronic actuator with a 7/32-inch (5.5 mm) stroke. A typical application for the Powermite two-way valve is the control of hot or chilled water or low pressure (<15 psi) steam for convectors, fan coil units, unit conditioners, radiation, reheat coils, and similar terminal units requiring an actuator that delivers a minimum of 67 pounds force (300 N). 599-02045

SKU: SIEMENS:599-02045

Product Availability: Out of stock

$96.19

This product must be purchased in increments of 1

Qty:

i h

- 2 Way
- Stroke 7/32"
- Connection 3/4"
- Brass Body
- Temp Range 20 to 250 F
- 6.3 Cv
- Normally Open

The Powermite 599 Series ANSI Class 250 MT Series two-way valve bodies work with
any MT Series pneumatic or electronic actuator with a 7/32-inch (5.5 mm) stroke.

A typical application for the Powermite two-way valve is the control of hot or chilled
water or low pressure (<15 psi) steam for convectors, fan coil units, unit conditioners,
radiation, reheat coils, and similar terminal units requiring an actuator that delivers a
minimum of 67 pounds force (300 N).

599-02045

Products specifications

Manufacturer	Siemens
