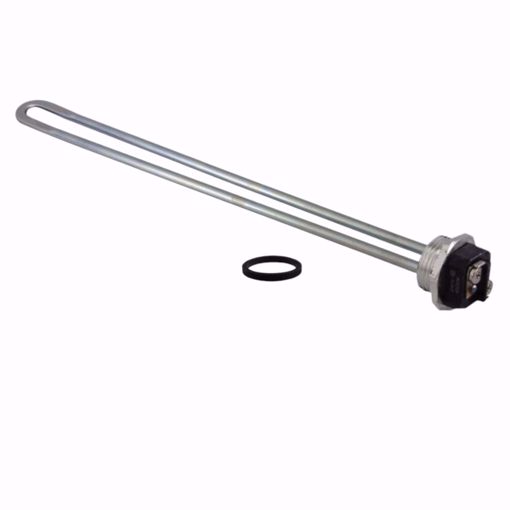

ELEMENT 240V/3800W CU 1SCREW

- Actual Thread Size - Outside Diameter (in.)1-9/32 - Element Diameter (in.) 0.26 - Element Length - Flange to Tip (in.) 13.44 - Hex Head Size - Across Flats (in.) 1-1/2 - Input Voltage (V) 240 - Mounting Type Threaded - Nominal Thread Size - (in.) 1 - Outer Sheath Material Copper (with Plating) - Resistored No - Thread Type Series Designation NPSM - Threads per Inch 11-1/2 - Watt Density at 240V (W/sq. in. ) 177 - Watt Density Classification HWD - Wattage at 240V (W) 3800 Features - 240-Volt, 3800-Watt copper straight heating element (high-watt density) - Direct replacement for Rheem, Ruud and Richmond water heaters - Provides uniform heat distribution for a long-lasting performance - Made of durable copper - Gasket and detailed instructions included - UL and CSA listed for safety - Element length: flange to tip - 13.44 in. Fits most water heaters which use screw-in type elements. In addition to OEM application for Rheem, Ruud, Richmond, Vanguard, General Electric, also fits most Kenmore, A. O. Smith, Bradford White, Craftmaster, Lochinvar, Mor-Flo, Reliance, GS Wood, State and Whirlpool heaters. 1 inch NPSM threads. Our Screw-In Water Heater Elements feature true OEM performance. These are the same elements that are used in the production of every Rheem electric water heater. Rheem heating elements use patented restored technology that helps increase the life of the tank and element
