VR8204A 2142 COMBINATION GAS CONTROL 1/2 IN X 1/2 IN STRAIGH

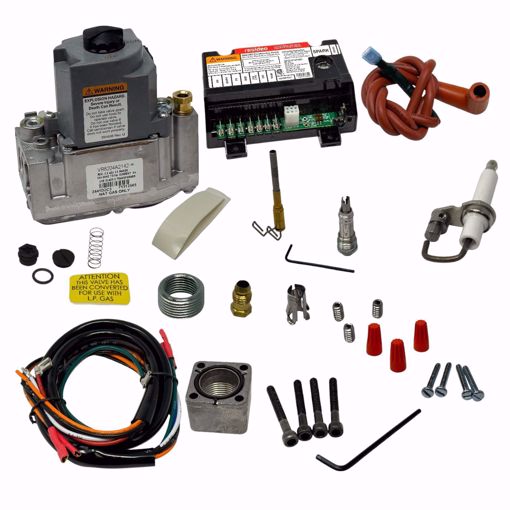

Y8610U4001 RESIDEO VR8204A2142 COMBINATION GAS CONTROL 1/2 IN X 1/2 IN STRAIGHT Kit Contains - Dual Valve Combination Gas Control VR8204A2142 - 150,000 Btu/h capacity at 1 inch wc pressure drop - Temp Range 0 to 175 F - 1/2 inch NPT inlet x 1/2 inch NPT outlet, straight through - Pressure Regulator set at 3.5 inches wc - Total current .5 Amps - 24V - 60Hz Intermittent Pilot Module S8610U3009 - 100 % shutoff, - 90 second ignition trial, continuous retry - 24 Vac - 60 Hz Flame Failure Response Time (sec): 2 seconds maximum - Pre-Purge: None - Ambient Temperature Range (F): -40 F to +175 F - Ignition System Type: Intermittent Pilot - Ignition Sequence: Continuous Retry - Typical Gas Control: VR8204, VR8304 - Type of Gas: Natural or LP - Flame Sense: Single Rod - Ignition Source: Internal high voltage spark generator - Ignition Trials To Lockout: continuous retry - Lockout Timing: continuous retry - Ignition Trial Time (sec): 90 sec - Maximum Valve Load @ 24 Vac (Amps): 1A Pilot, 2A Main @ 24Vac - Typical Ignition Hardware: Q345, Q3451, Q3452 - Between Trial Time (sec): 5-minute delay after failed trial for ignition. Igniter- Sensor Resideo Part Number 392431 - Conversion kits, reducer bushings, flanges, etc. - Regulator spring, o-ring, adjustment screw and cap screw - 8 - 12" adjustment range Ignition Cable RESIDEO 394800-30 - 30" Ignition Cable Assembly with right angle boot for pilot burner connection - 30" Length - Used with S8600 Family - Ignition System Type Intermittent Pilot - Right Angle 90 Degree Boot on one end. The other end is 1/4" straight quick connect Wiring Harness Resideo Part Number 393044 Straight Flange Kit Honeywell 393690-14 - Flange Kit bag assembly, includes 3/4 inch straight flange, O-ring, 9/64 inch hex screws and 9/64 inch hex wrench Used With : VR8100, VR8200, VR8300, VR4200, VR4300, SV9500, VR8104, VR8204, VR8304, VR4204, VR4304, VR8105, VR8205, VR8305, VR4205, VR4305 Other items in the kit include - 393691 Resideo LP Gas Conversion kit Adjustment of 8 to 12" wc - 390427T & 392447 Features - Use with natural or LP gas - Includes gas valve, ignition module, pilot burner hardware, ignition cable, and wiring harness - Provides 100 percent pilot gas shutoff if pilot fails to light; after 6-minute delay, trial for ignition is repeated. - Ignition trail/delay sequence is repeated until the appliance lights or call for heat is removed. - Kit includes service accessories for both LP and Natural Gas applications. - Convert a standing pilot appliance to intermittent pilot electronic ignition Intermittent Pilot Retrofit Kits save energy by converting atmospheric standing pilot systems to intermittent pilot. Typical applications are gas-fired atmospheric furnaces, boilers and heating appliances.
