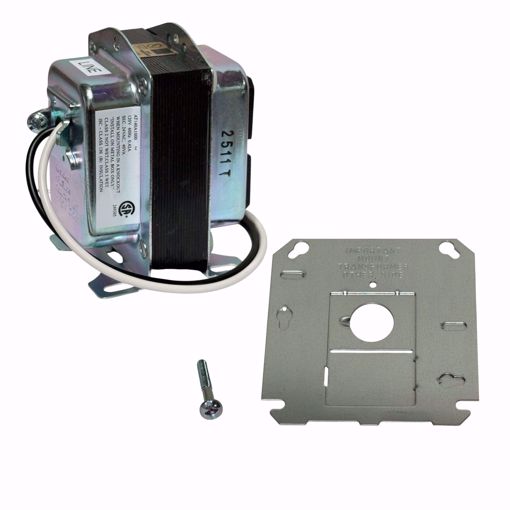

AT140A1000 RESIDEO 120V WITH UNIVERSAL MOUNTING (PLATE FOOT OR KNOCKOUT).

Manufacturer: Resideo

AT140A1000 RESIDEO 120V WITH UNIVERSAL MOUNTING (PLATE FOOT OR KNOCKOUT). - 120V - 60Hz - 0.42 Amps Secondary - 24VAC - 40VA - Temperature Range -20 F to +105 F - Includes Metal end bells Mounting: Foot mounted, plate mounted on 2x4 in. or 4x4 in. outlet box, clamp mounted using outlet box knockout, or panel mounted. - Electrical Connections (Primary) 9" lead wires. - Electrical Connections (Secondary) 2 screw terminals. - Electrical Ratings, Output 24 Vac at 40 VA Features - Color-coded lead wires for primary connections and screw terminals for secondary connections - Includes fixed 1/4 inch (6mm) male quick-connects (AT140A models only) or color-coded lead wires for primary and secondary connections - Meets NEC Class 2 requirements and Underwriters Laboratories Standard UL 1585 - Identified Class 2 not wet, Class 3 wet

SKU: RESIDEO:AT140A1000

Product Availability: 11

$19.94

This product must be purchased in increments of 1

Qty:

i h

AT140A1000 RESIDEO 120V WITH UNIVERSAL MOUNTING (PLATE FOOT OR KNOCKOUT).

- 120V
- 60Hz
- 0.42 Amps

Secondary
- 24VAC
- 40VA

- Temperature Range -20 F to +105 F
- Includes Metal end bells

Mounting: Foot mounted, plate mounted on 2x4 in. or 4x4 in. outlet box, clamp mounted using outlet box knockout, or panel mounted.

- Electrical Connections (Primary) 9" lead wires.
- Electrical Connections (Secondary) 2 screw terminals.
- Electrical Ratings, Output 24 Vac at 40 VA

Features
- Color-coded lead wires for primary connections and screw terminals for secondary connections
- Includes fixed 1/4 inch (6mm) male quick-connects (AT140A models only) or color-coded lead wires for primary and secondary connections
- Meets NEC Class 2 requirements and Underwriters Laboratories Standard UL 1585
- Identified Class 2 not wet, Class 3 wet

Products specifications

Manufacturer	Resideo
