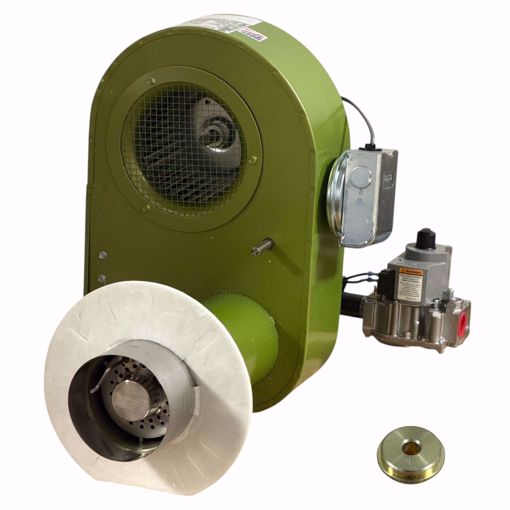

4090164 MIDCO RE4400DS BURNERASSY 30SECPREPG
- Model # RE4400DS
- Bill Mat 4090164
- Max Input BTU/HR 400,000
- Min Input BTU/HR 132,000
- Type of Gas Natural Gas
- 120V
- 60Hz
- 3.5 Amps
- Motor HP 1/6 HP
Inlet Pressure
- Nat 7.0" to 14.0" WC
- Prop 5.0" to 14.0" WC
Man Pressure
- Nat 0.6" to 4.3" WC
- Prop 0.3" to 3.6" WC
Contains
Midco Motor US Motors
- Part Number 843784
- Model # S55KXRSZ-8552
- 1 Phase
- 1/6 HP
- 3450/2850 RPM
- 115/208-230V
- 60/50Hz
- Frame 48
- Thermally Protected
Ignition Module Fenwal Controls Part Number 35-605501-203
- Ignition 7 Seconds
- Input 24VAC @ 50/60Hz @ 300mA
- Valve 24VAC @ @ 2.0 Amps Max
- Ambient Temp -40 to 176 F (-40 C to 80 C)
The 35-60 is a 24 VAC direct spark ignition (DSI) control designed for use in all types of gas-fired appliances. The control uses a microprocessor circuit to provide precise, repeatable timing and operating sequences. On-board diagnostics with LED output makes troubleshooting easy and ensures safe and efficient operation
Features:
- 1 Try
- Safe start with DETECT-A-FLAME flame sensing technology
- Custom pre-purge and inter-purge timings
- Single or three trials for ignition
- System diagnostic LED
- Flame current test points
- Local or remote flame sensing
- Automatic reset
- Alarm output (normally closed contact)
Gas Valve Honeywell Part number VR8305K4852
- 24V
- 50/60Hz
- Standard Factory Reg Setting 3.5" WC
- Current Draw 0.7 Amps
- 3/4" x 3/4" Inlet/Outlet
- Natural Gas
Pressure Switch Honeywell Part Number FP6127
- Max Operating Pressure .26" WC
- 1/10 HP @ 120VAC
- 1/10 HP @ 277VAC
- 28 VA Pilot Duty @ 24 VAC
- 125 VA Pilot Duty @ 120 VAC
Max Service Ratings for Pressure Switch
- 1/2 PSI
- Max Temp Rating 190 F
- Field Wiring to be 194 F (90 C)
Direct Replacement for 4090120
