No. of Poles 2 Motor Type PSC Enclosure Semi Enclosed HP (Max.) 1/7 Voltage 115 Mounting Two bolt direct mounting Speeds 1 Hz 60 Rotation REV RPM Range 3450 Phase Single Standards cULus FLA 1.5 Bearing Ball Lead Length (in.) 14 Thermal Protection Auto Ambient Deg C 40 Ins. Class B Shaft Dia. (in.) 1/2 Capacitor Included No Shaft Length (in.) 1.75 Service Factor 1.0 Duty Continuous
REPLACES BECKETT 21805U, MARATHON O701, US MOTORS O701, Beckett 2456, Beckett 2456U, Beckett 21805E, Beckett 21805B, Beckett 21805R, SA55GYKPA-5733, SA55GYKPA5733 A.O.SMITH OBK6002, Carlin 98022S, Marathon 0701, Emerson 3248, Sid Harvey A39-31P, A3931P, Heat Chief PSC Oil Burner Motor, Grainger 3AAC3, 21805GU, General Electric 5KH39BN5010JY, Emerson Electric S55GYSJP-5866 (2456U), S55GYSJP5866, Marathon Electric 5PL48S34S361DP, Reznor 41598, Bard 9022-013 Beckett AF

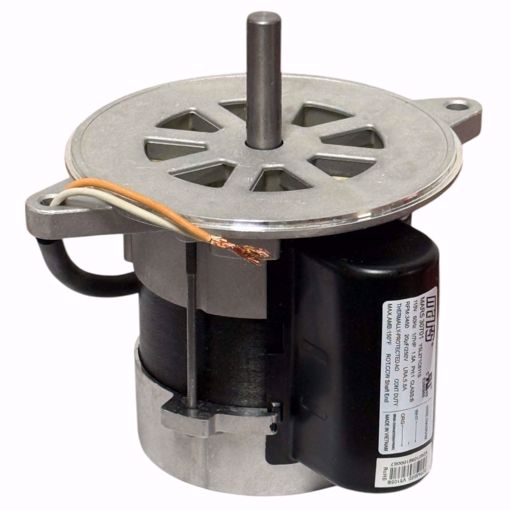

MARS PSC Oil Burner Motor
- Residential/Commercial
- For Oil Burner, Hot Water, Pressure/Steam and more
- Two bolt direct mounting
- Single Phase
- Semi-Enclosed
- Automatic Reset Overload
