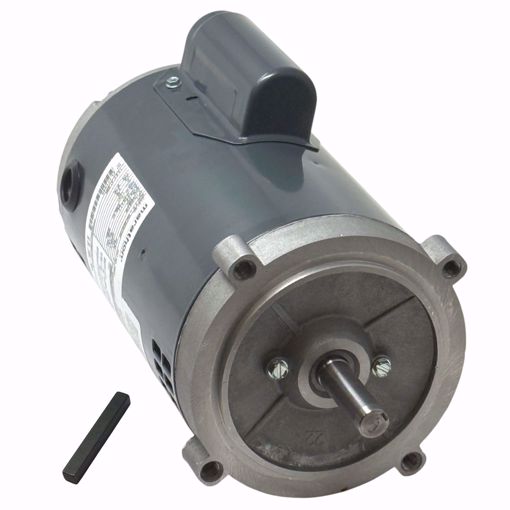

1 3450 56C 1/60/115/208-230
Model #:56C34D2105F
Part #:056C34D2105
Catalog #:O217
Nameplate Specifications
- 1 HP
- 3450 RPM
- 56C Frame
- 12/6.2-6 Full Load Amps
- 60 Hz
- 0.75 kW
- Mounting C-Face Footless
- Nema Defintite Duty
- Phase 1
- Rotation Selective CCW
- Voltage 115/208-230
- Enclosure: Drip Proof
- Efficiency: 71.5 %
- Insulation Class: B
Technical Specifications
- Electrical Type: Capacitor Start Induction Run
- Poles 2
- Resistance Main: 0 Ohms
- Motor Orientation: Horizontal
- Opp Drive End Bearing: Ball
- Shaft Type: T
- Frame Length: 8.00 in
- Shaft Extension: 2.06 in
- Frame Material: Rolled Steel
KEY FEATURES
- UL recognized component listing and CSA certification ensures the product is safe for use.
- Double shielded ball bearings provide longer service life.
- Continuous or continuous air over duty design allows consistent operation at the rated power(as noted).
- Various mounting configurations (as noted).
