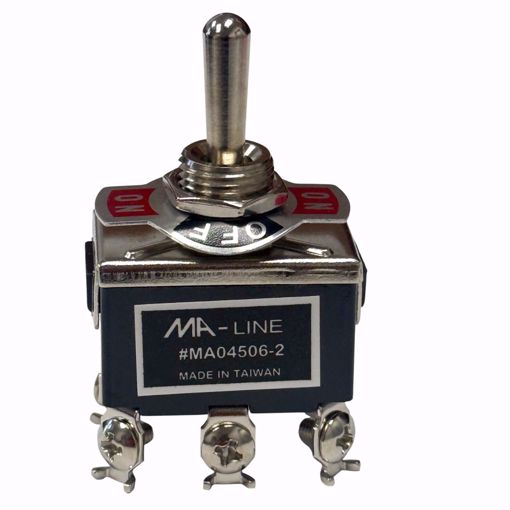

⚙️ MA04506-2 MA-LINE DP-DT Center-Off Toggle Switch
The MA04506-2 MA-LINE Toggle Switch is a high-quality double-pole, double-throw (DP-DT) switch with a convenient center-off position, designed for reliable control in a wide variety of electrical applications. Engineered for durability and precision, it ensures safe and efficient operation in both industrial and commercial settings.
✅ Key Features
-
✅ DP-DT (Double-Pole, Double-Throw) configuration for versatile circuit control
-
✅ Center-Off position for neutral state and added control flexibility
-
✅ High current capacity: 250VAC @ 15A / 125VAC @ 20A
-
✅ Rugged construction for long-lasting performance
-
✅ Simple installation and reliable switching operation
📊 Specifications
| Specification | Detail |
|---|
| Manufacturer |
MA-LINE |
| Model |
MA04506-2 |
| Switch Type |
DP-DT Center-Off Toggle |
| Voltage Rating |
250VAC @ 15A, 125VAC @ 20A |
| Poles/Throws |
Double-Pole / Double-Throw |
| Center-Off |
Yes |
| Mounting |
Panel Mount / Standard Toggle |
| Application |
Electrical control circuits, machinery, HVAC, industrial equipment |
| Construction |
Durable metal and thermoplastic materials |
| Actuator Type |
Toggle |
⚠️ Common Symptoms of a Failing Toggle Switch
-
Switch does not maintain position
-
Intermittent or no circuit connection
-
Sparks, unusual heat, or audible buzzing during operation
-
Difficulty toggling or a loose lever
💬 Frequently Asked Questions (FAQ) ❓
Q: What does DP-DT mean?
A: DP-DT stands for Double-Pole, Double-Throw, meaning the switch can control two circuits and toggle between two outputs.
Q: What is the center-off position used for?
A: The center-off allows the switch to remain in a neutral/off state, preventing any circuit connection.
Q: What are the voltage and current ratings?
A: Rated for 250VAC at 15A and 125VAC at 20A, suitable for most industrial and commercial circuits.
Q: Is it easy to install?
A: Yes, designed for standard panel mounting with a simple toggle actuator.
🛒 Shopping Tips
-
Ensure the switch matches your voltage and amperage requirements.
-
Check if a center-off DP-DT toggle is required for your application.
-
Ideal for industrial machinery, HVAC systems, and electrical control panels.
