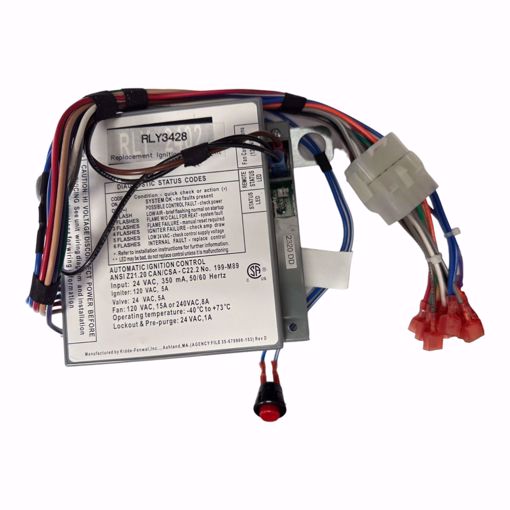

Lochinvar 100167908 Automatic Ignition Control Module Replaces: 05-349000-163 Specifications: Input: 24 VAC, 350 mA, 50/60Hz Igniter: 120 VAC, 5A Valve: 24 VAC, 5A Fan: 120 VAC, 15A OR 240 VAC, 8A Operating Temperature: -40°C TO +73°C Lockout and Pre-Purge: 24 VAC, 1A Used On Lochinvar Models: CB495, CF500, CH400, CP500, CW645, CH300, CP300, CS985, CP400, CP650, CS475, CH650, CS645, CB1255, BNR2401, CW745, CW1795, CS745, CB645, CB1795, CS1255, CS2065, CW1435, CB745, CW495, BNR2400, CF750, CW2065, BNR3400, CF300, CW985, CF650, CB1435, CH500, CB2065, CB985, CF400, CS1435, CW1255, CP750, CS495, CS1795, CB 495, CW 495, CS 495, CB 645, CW 645, CS 645, CB 745, CW 745, CS 745, CB 985, CW 985, CS 985, CB 1255, CW 1255, CS 1255, CB 1435, CW 1435, CS 1435, CB 1795, CW 1795, CS 1795, CB 2065, CW 2065, CS 2065, CH 750, CF 750, 750, CH 650, CF 650, 650, CH 500, CF 500, 500, CH 400, CF 400, 400, CH 300, CF 300Replaces RLY3428
