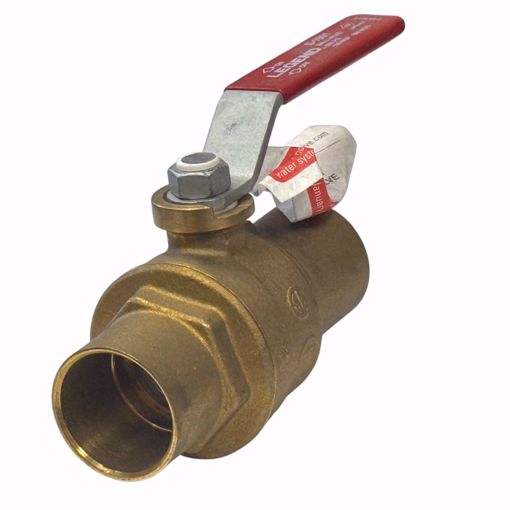

101-045 LEGEND 1 INCH SWEAT FULL PORT BALL VALVE – MODEL S-1001 🔥
Product Overview
The Legend S-1001 1" Sweat Full Port Ball Valve is designed for residential and commercial use on steam, water, oil, or gas systems. Its full port ensures maximum flow with minimal pressure drop, while the heavy-duty forged brass construction guarantees long-lasting reliability.
Ideal for high-performance applications, the valve features blowout-proof stems, dual Viton O-rings, and Dyneon TFM PTFE seats for smooth operation.
⚠️ Important Notes
-
Product not legal for use in potable water systems after Jan 4th, 2014.
-
Ensure compatibility with system pressure ratings before installation.
Key Features ✅
-
✅ Full port for maximum flow and minimal pressure drop
-
✅ Heavy-duty forged brass body
-
✅ Blowout-proof stem with Teflon anti-friction washers
-
✅ Dual Viton O-rings for superior sealing
-
✅ Dyneon TFM PTFE seats reduce actuation torque
-
✅ Self-cleaning chrome-plated ball for smooth operation
-
✅ Corrosion-resistant Dacromet-coated steel handle
-
✅ Suitable for steam, water, oil, or gas applications
Tech Specs 📊
| Specification | Value |
|---|
| Model |
S-1001 |
| Valve Type |
Full Port Ball Valve |
| Size |
1 Inch |
| End Type |
Sweat |
| Material |
Forged Brass |
| Stem Design |
Blowout-proof with dual Viton O-rings |
| Seats |
Dyneon TFM PTFE |
| Max Cold Working Pressure (CWP) |
600 PSI |
| Max Saturated Steam Pressure (WSP) |
150 PSI |
| Handle |
Dacromet-coated steel |
| Applications |
Steam, Water, Oil, Gas |
Symptoms / Issues 🔧
-
Leaks around the stem or body
-
Valve difficult to turn or stuck
-
Pressure drop due to partial closure or blockage
-
Handle corrosion affecting operation
FAQ ❓
Q: Can this valve be used on potable water systems?
A: No, this valve is not legal for use in potable water systems after Jan 4th, 2014.
Q: What type of fluids can it handle?
A: Steam, water, oil, and gas systems are compatible.
Q: How do I install a sweat valve?
A: Standard soldering techniques for copper piping are required.
Q: What maintenance is required?
A: Periodic inspection for leaks and smooth operation; replace O-rings if wear is detected.
Shopping Tips 🛒
-
✅ Verify pipe size before purchasing
-
✅ Ensure the system pressure does not exceed valve specifications
-
✅ Consider pairing with Legend handle locks for tamper-proof installation
-
✅ Compatible with high-temperature steam, water, oil, and gas systems
