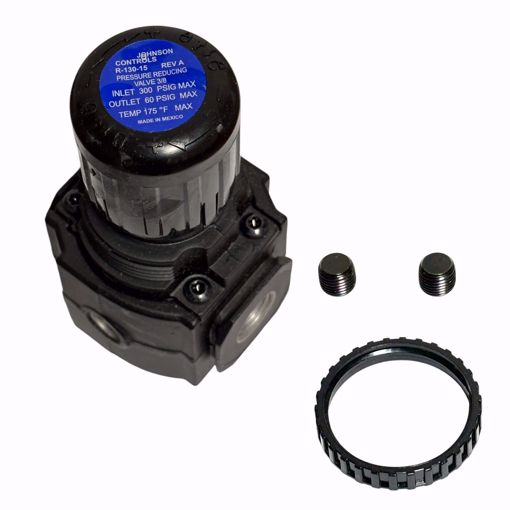

3/8REG 300#MAX IN 0/50#OUT

Manufacturer: Johnson Controls

- Fitting Size 3/8" - Flow Capacity scfm/l/s 20/9.4 - Inlet 300 PSIG Maximum - Outlet 60 PSIG Maximum - Temperature 175 F Maximum The R-130 Air Pressure Reducing Valve reduces the primary air supply pressure to a selected pressure in a compressed air system. The Reducing Valve can also be used as a minimum set point regulator. When the R-130 is used as a minimum set point regulator, an R-3710 Series 0.005 Restrictor must be used in the output line Features • available in two models • adjustable pressure setting • lockable adjusting knob • works as a minimum set point regulator when used with an R-3710 Series 0.005 in. restrictor in the output line • includes a gauge connection in the valve body

SKU: JOHNSON:R-130-15

Product Availability: Out of stock

$237.83

This product must be purchased in increments of 1

Qty:

i h

- Fitting Size 3/8"
- Flow Capacity scfm/l/s 20/9.4
- Inlet 300 PSIG Maximum
- Outlet 60 PSIG Maximum
- Temperature 175 F Maximum

The R-130 Air Pressure Reducing Valve reduces the primary air supply pressure to a
selected pressure in a compressed air system. The Reducing Valve can also be used as a minimum set point regulator. When the R-130 is used as a minimum set point
regulator, an R-3710 Series 0.005 Restrictor must be used in the output line

Features
• available in two models
• adjustable pressure setting
• lockable adjusting knob
• works as a minimum set point regulator when used with an R-3710 Series 0.005 in. restrictor in the output line
• includes a gauge connection in the valve body
