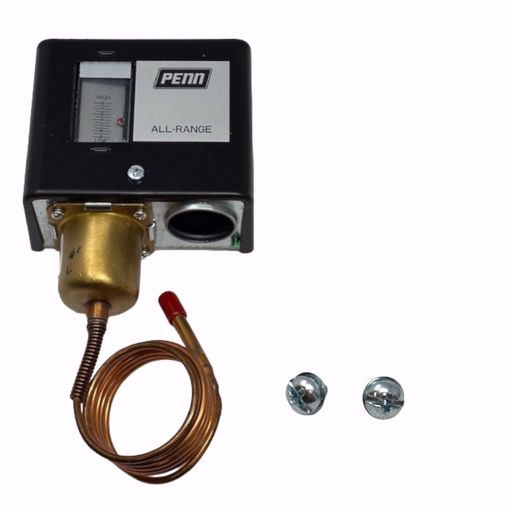

DPST PRESSURE CONTROL; WESTINGHOUSE PART 516B665H07 RANGE 50

Manufacturer: Johnson Controls

- Series P72 - Rated Voltage 208V AC; 240V AC - DPST - NEMA Rating 1 - Switch Action Open on Fall Contact Rating (AC) - 102 A @ 240V AC (Single Phase) - 112.2 A @ 208V AC - 15 A @ 220V AC (Three Phase) - 15.9 A @ 208V AC - 17 A @ 240V AC (Single Phase) - 18.7 A @ 208V AC - 22 A @ 208V AC - 24 A @ 120V AC (Non-Inductive) - 24 A @ 208V AC - 24 A @ 220V AC (Three Phase) - 24 A @ 240V AC (Single Phase) - 90 A @ 220V AC (Three Phase) - 95.4 A @ 208V AC - FLA: 24 A @ 120V AC - LRA: 144 A @ 120V AC P70, P72, and P170 Series Controls for Low Pressure Applications provide low-side pressure control on commercial refrigeration and air-conditioning applications P72 Series control models have a Double-Pole Single-Throw (DPST) switch with load-carrying contacts that provide direct control of 208-240 VAC single-phase motors up to 3 hp, 480 VAC single-phase, non-compressor motors, and 208-220 VAC 3-phase motors up to 5 hp.

SKU: JOHNSON:P72AA-11C

Product Availability: 1

$260.82

This product must be purchased in increments of 1

Qty:

i h

- Series P72
- Rated Voltage 208V AC; 240V AC
- DPST
- NEMA Rating 1
- Switch Action Open on Fall

Contact Rating (AC)
- 102 A @ 240V AC (Single Phase)
- 112.2 A @ 208V AC
- 15 A @ 220V AC (Three Phase)
- 15.9 A @ 208V AC
- 17 A @ 240V AC (Single Phase)
- 18.7 A @ 208V AC
- 22 A @ 208V AC
- 24 A @ 120V AC (Non-Inductive)
- 24 A @ 208V AC
- 24 A @ 220V AC (Three Phase)
- 24 A @ 240V AC (Single Phase)
- 90 A @ 220V AC (Three Phase)
- 95.4 A @ 208V AC
- FLA: 24 A @ 120V AC
- LRA: 144 A @ 120V AC

P70, P72, and P170 Series Controls for Low Pressure Applications provide low-side pressure control on commercial refrigeration and air-conditioning applications

P72 Series control models have a Double-Pole Single-Throw (DPST) switch with load-carrying contacts that provide direct control of 208-240 VAC single-phase motors up to 3 hp, 480 VAC single-phase, non-compressor motors, and 208-220 VAC 3-phase motors up to 5 hp.
