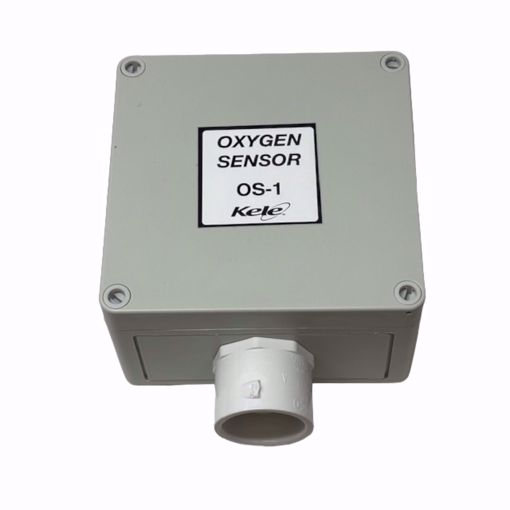

OXYGEN SENSOR 4-20MA/0-; 25%

Manufacturer: Johnson Controls

- Supply Voltage: 24 VAC @ 6 VA or 24 VDC @ 250 mA - Accuracy: ±1% - Signal Output: (jumper selectable), 4-20 mA (300O max), 0-5 VDC (20 kO min), 0-10 VDC (20 kO min) - Measurement Range: 0% to 25% oxygen - Sensing Technology: Galvanic cell - Life Expectancy: Approximately five years @ 68°F (20°C) in ambient air - Response Time: Approximately 12 seconds - Relay Type: SPDT 24 VAC/VDC @ 0.5A, factory set @ 19.5% - Operating Temperature: 40° to 104°F (5° to 40°C) - Operating Humidity: 10% to 95% non-condensing

SKU: JOHNSON:OS-1

Product Availability: 2

$1,296.70

This product must be purchased in increments of 1

Qty:

i h

- Supply Voltage: 24 VAC @ 6 VA or 24 VDC @ 250 mA
- Accuracy: ±1%
- Signal Output: (jumper selectable), 4-20 mA (300O max), 0-5 VDC (20 kO min), 0-10 VDC (20 kO min)
- Measurement Range: 0% to 25% oxygen
- Sensing Technology: Galvanic cell
- Life Expectancy: Approximately five years @ 68°F (20°C) in ambient air
- Response Time: Approximately 12 seconds
- Relay Type: SPDT 24 VAC/VDC @ 0.5A, factory set @ 19.5%
- Operating Temperature: 40° to 104°F (5° to 40°C)
- Operating Humidity: 10% to 95% non-condensing
