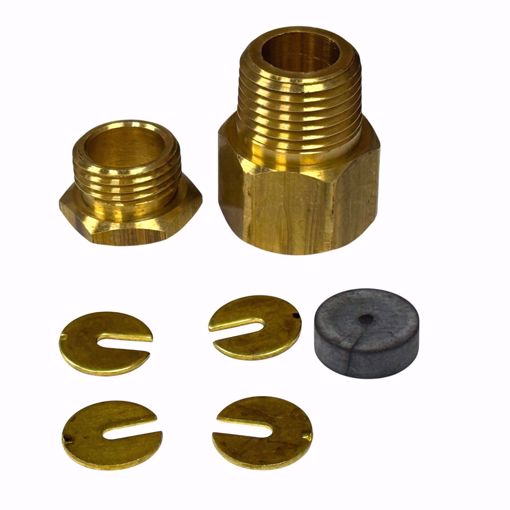

⚙️ FTG13A-600R Johnson Controls 1/2" Tank Connection – 150 PSI Max

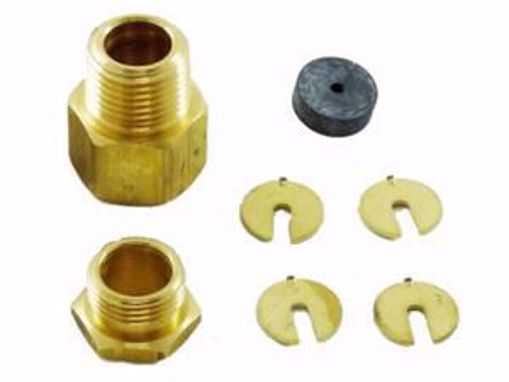

The Johnson Controls FTG13A-600R is a 1/2" copper alloy tank connection fitting designed for closed-tank temperature sensor installations. It provides a reliable, pressure-rated connection between the tank and Johnson Controls TE-6000 and TE-6300 series temperature elements.
Built to handle demanding system conditions, the FTG13A-600R maintains performance under liquid pressures up to 150 PSI (1034 kPa) and temperatures between -35°F (-37°C) and 250°F (121°C).
⚠️ Note: This product contains lead and should not be used in potable (drinking) water systems.
✅ Key Features
-
✅ 1/2" Threaded Tank Connection for closed tank applications
-
✅ Compatible with Johnson Controls TE-6000 & TE-6300 sensor series
-
✅ Rated for 150 PSI (1034 kPa) maximum liquid pressure
-
✅ Wide temperature range: -35°F to 250°F (-37°C to 121°C)
-
✅ Constructed from durable copper alloy for strength and corrosion resistance
-
✅ Designed for temperature sensor installation in closed tanks
-
✅ Reliable seal and pressure integrity in harsh environments
-
✅ Factory-tested for leak-free operation and precise fit
📊 Specifications
| Specification | Detail |
|---|
| Manufacturer |
Johnson Controls |
| Part Number |
FTG13A-600R |
| Connection Type |
1/2" Tank Thread |
| Compatible Models |
TE-6000, TE-6300 Series |
| Max Operating Pressure |
150 PSI (1034 kPa) |
| Temperature Range |
-35°F to 250°F (-37°C to 121°C) |
| Material |
Copper Alloy |
| Application |
Closed Tank Systems |
| Fluid Type |
Non-potable liquids only |
| Compliance |
Not for use with drinking water |
| Thread Type |
1/2" NPT (Tank Connection) |
⚠️ Common Symptoms / When to Replace
-
Leaking or deteriorated gasket at tank interface
-
Corrosion or pitting on fitting threads
-
Inaccurate temperature sensor readings due to poor connection
-
Pressure drop or fluid leakage in tank assembly
-
Fitting no longer meets safety or pressure requirements
💬 Frequently Asked Questions (FAQ) ❓
Q: What sensors work with this fitting?
A: The FTG13A-600R is designed for Johnson Controls TE-6000 and TE-6300 series temperature sensors.
Q: Can this fitting be used in potable water systems?
A: No. It contains lead and must not be used in any drinking water or potable water applications.
Q: What is the maximum pressure rating?
A: The fitting supports up to 150 PSI (1034 kPa) liquid pressure.
Q: What is the operating temperature range?
A: It operates reliably between -35°F (-37°C) and 250°F (121°C).
Q: What material is the fitting made from?
A: It’s made of a lead-containing copper alloy, ensuring durability and heat resistance for industrial use.
🧰 Typical Applications
-
Closed-tank heating or cooling systems
-
Industrial fluid temperature monitoring
-
Hydronic and process control systems
-
Non-potable water systems requiring rugged tank fittings
